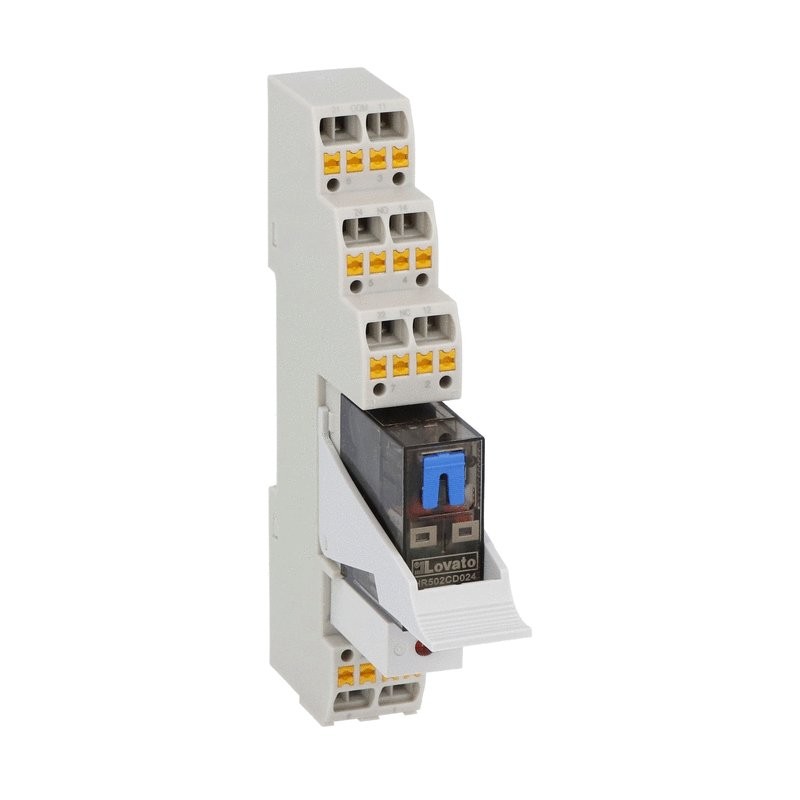

LOVATO ELECTRIC HRA502CD024K5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HRA502CD024K5 LOVATO RELAY 2SC 8A 24VDC, LED+POWER+Screw

Code: HRA502CD024K5

Manufacturer: LOVATO ELECTRIC

Description:

RELAY 2SC 8A 24VDC, LED+POWER+Screw
Assembled miniature relay with LED state indicator and mechanical actuator, 24VDC, 8A, 2C/O contact. Push-in terminals with retain/release clip and suppressor filter

Categories:

  • Relays > Switching relay
  • LOVATO ELECTRIC > Industrial relays

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 17,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

HRA502CD024K5

Assembled miniature relay with LED state indicator and mechanical actuator, 24VDC, 8A, 2C/O contact. Push-in terminals with retain/release clip and suppressor filter

Technical specifications

Type of product:
Assembled miniature relays
Type of contacts:
2 C/O
Relay control voltage:
24VDC
IEC Conventional free air thermal current Ith [A]:
8
LED state indicator:
Yes
Mechanical actuator:
Yes
Type of socket:
Spring terminals
Order codeHRA502CD024K5
Weight [g]85.78
Qty. per package5
Multiple qty. of packs per order5
Package dimensions [mm]126X092X085
Volume [cm³]197.064
Bar code [EAN13]8013975322284
HS Code85364900

24.78 £

ETIM for HRA502CD024K5 Relays (EC001437)

Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value2
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNominal current (EF000001)
Feature value8 A
Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameComplete with socket (EF003359)
Feature valueYes
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueSpring clamp connection
Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameDrive, polarization (EF003355)
Feature valuePolarized

DATASHEET - PDF

Title
Size
Type
HRA502CD024K5 EN_HRA502CD024K5.pdf
120 Kbytes
PDF CATALOGUE LOVATO EN
99 Mbytes
