LOVATO ELECTRICIndustrial relaysHRA101CE024S LOVATO Relay Narrow+Base spring 1Conmutado 6A 24VACDC

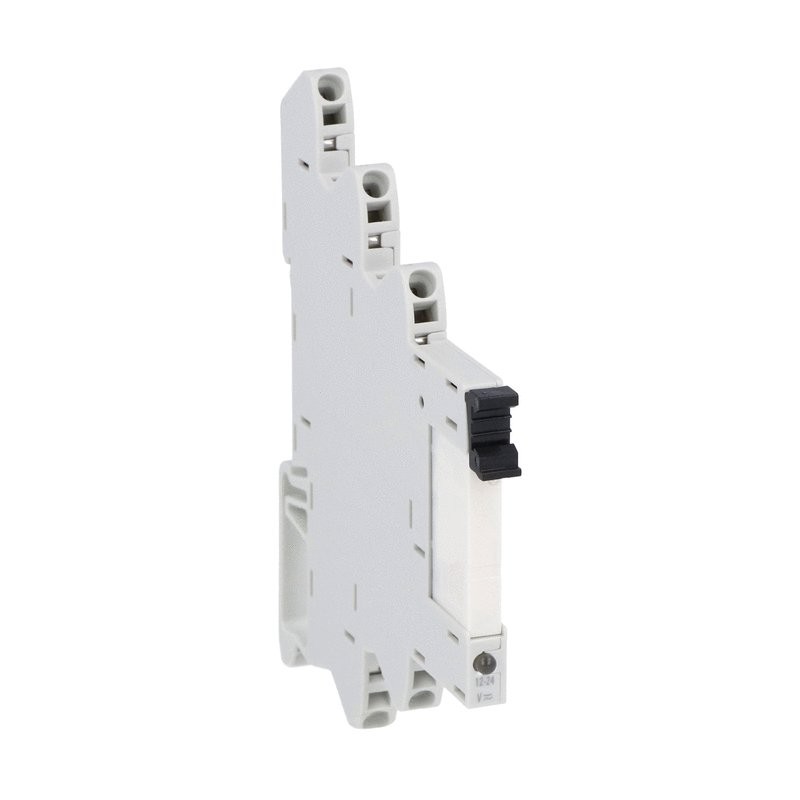

LOVATO ELECTRIC HRA101CE024S HRA101CE024S - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HRA101CE024S LOVATO Relay Narrow+Base spring 1Conmutado 6A 24VACDC

Reference: HRA101CE024S

Manufacturer: LOVATO ELECTRIC

Description:

Relay Narrow+Base spring 1Conmutado 6A 24VACDC
SLIM RELAY+SOCKET SPRING 1C/O 6A 24VACDC
Slim electromechanical relay assembled on socket, 24VAC/DC, 6A, 1 C/O contact, spring terminals
SLIM ELECTROMECHANICAL RELAY ASSEMBLED ON THE SOCKET, 24VAC/DC, 6A, 1 C/O CONTACT, SPRING TERMINALS

Categories:

  • Relays > Switching relay
  • LOVATO ELECTRIC > Industrial relays

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 13,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HRA101CE024S

Slim electromechanical relay assembled on socket, 24VAC/DC, 6A, 1 C/O contact, spring terminals

Technical specifications

Type of product:
Slim relays on the socket
Type of contacts:
1 C/O
Relay control voltage:
24VAC/VDC
IEC Conventional free air thermal current Ith [A]:
6
LED state indicator:
Yes
Mechanical actuator:
No
Type of socket:
Spring terminals
Order codeHRA101CE024S
Weight [g]37
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]365X200X210
Volume [cm³]76.65
Bar code [EAN13]8013975233153
HS Code85364900

17.83 £

ETIM for HRA101CE024S Relays (EC001437)

Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameDepth (EF000049)
Feature value76.5 mm
Feature nameHeight (EF000040)
Feature value89.5 mm
Feature nameWidth (EF000008)
Feature value6.3 mm
Feature nameNominal current (EF000001)
Feature value6 A
Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameComplete with socket (EF003359)
Feature valueYes
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueSpring clamp connection
Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameDrive, polarization (EF003355)
Feature valuePolarized
