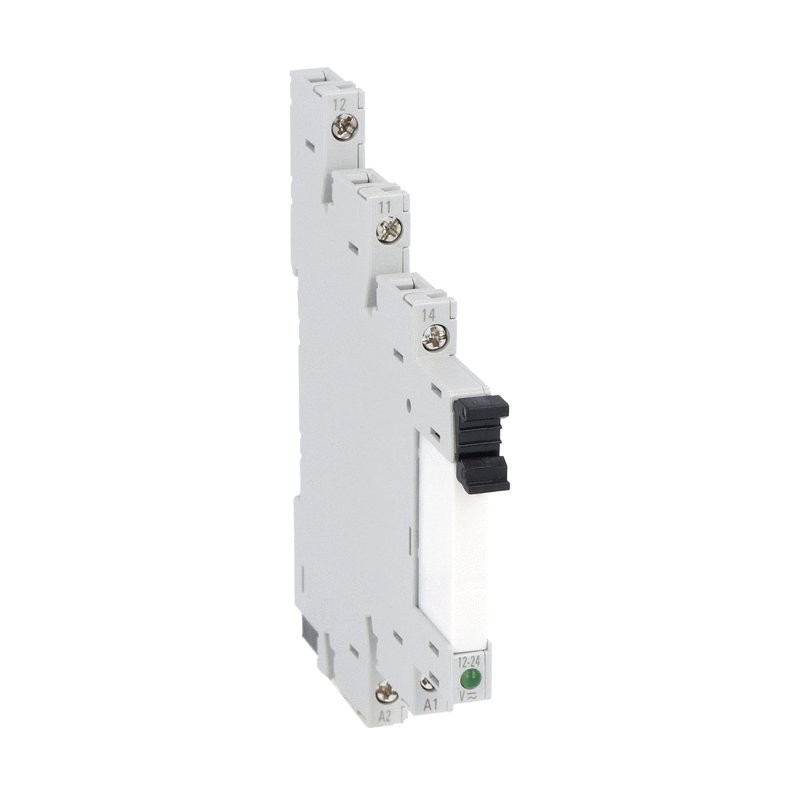

HRA101CE024 LOVATO Relay Narrow Base+screw 1Conmutado 6A 24VAC/DC
HRA101CE024
LOVATO ELECTRIC
Relay Narrow Base+screw 1Conmutado 6A 24VAC/DC
SLIM RELAY+SOCKET SCREW 1C/O 6A 24VAC/DC
Slim electromechanical relay assembled on socket, 24VAC/DC, 6A, 1 C/O contact, screw terminals
SLIM ELECTROMECHANICAL RELAY ASSEMBLED ON THE SOCKET, 24VAC/DC, 6A, 1 C/O CONTACT, SCREW TERMINALS
Relays > Switching relay
Industrial relays
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Often bought together
▲Best sellers
▲More info
▲HRA101CE024
Slim electromechanical relay assembled on socket, 24VAC/DC, 6A, 1 C/O contact, screw terminals
Technical specifications
- Type of product:
- Slim relays on the socket
- Type of contacts:
- 1 C/O
- Relay control voltage:
- 24VAC/VDC
- IEC Conventional free air thermal current Ith [A]:
- 6
- LED state indicator:
- Yes
- Mechanical actuator:
- No
- Type of socket:
- Screw terminals
| Order code | HRA101CE024 |
|---|---|
| Weight [g] | 37 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 365X200X210 |
| Volume [cm³] | 76.65 |
| Bar code [EAN13] | 8013975233146 |
| HS Code | 85364900 |
16.88 £
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Depth (EF000049) | 76.5 mm |
| Height (EF000040) | 89.5 mm |
| Width (EF000008) | 6.3 mm |
| Nominal current (EF000001) | 6 A |
| With LED indication (EF005950) | No |
| Complete with socket (EF003359) | Yes |
| With forced-guided contacts (EF003357) | No |
| With detachable clamps (EF003340) | No |
| Material of contact insert (EF008521) | Other |
| Voltage type for actuating (EF008242) | AC/DC |
| Material contact (EF007544) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Screw connection |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarized |
Datasheet - PDF
