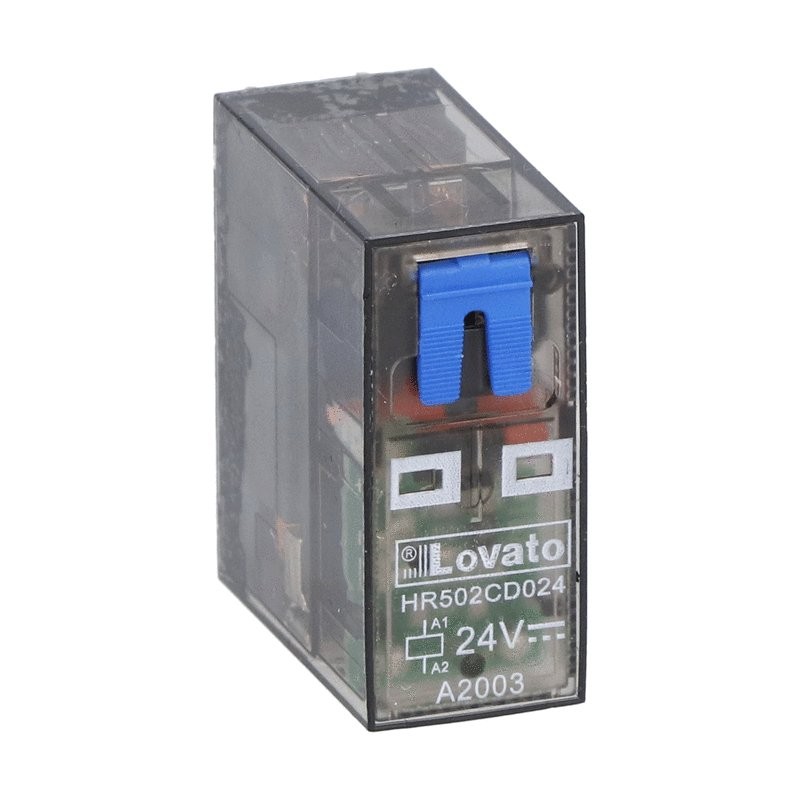

LOVATO ELECTRIC HR502CD024 HR502CD024 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HR502CD024 LOVATO Relay miniature 2 Switched 8A 24VDC + LED

Reference: HR502CD024

Manufacturer: LOVATO ELECTRIC

Description:

Relay miniature 2 Switched 8A 24VDC + LED
MINIATURE RELAY 2C/O 8A 24VDC + LED
Miniature relay with LED state indicator and mechanical actuator, 24VDC, 8A, 2C/O contact. Fitting on socket HR5XS2...
MINIATURE RELAY WITH LED STATE INDICATOR AND MECHANICAL ACTUATOR, 24VDC, 8A, 2C/O CONTACT. FITTING ON SOCKET 20 HR5XS2...

Categories:

  • Relays > Switching relay
  • LOVATO ELECTRIC > Industrial relays

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 7,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HR502CD024

Miniature relay with LED state indicator and mechanical actuator, 24VDC, 8A, 2C/O contact. Fitting on socket HR5XS2...

Technical specifications

Type of product:
Miniature relays
Type of contacts:
2 C/O
Relay control voltage:
24VDC
IEC Conventional free air thermal current Ith [A]:
8
LED state indicator:
Yes
Mechanical actuator:
Yes
Order codeHR502CD024
Weight [g]18
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]365X210X205
Volume [cm³]31.426
Bar code [EAN13]8013975233528
HS Code85364900

7.2 £

ETIM for HR502CD024 Relays (EC001437)

Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valuePlug-in connection
Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameDrive, polarization (EF003355)
Feature valuePolarity free
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value2
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameDepth (EF000049)
Feature value13 mm
Feature nameHeight (EF000040)
Feature value25.5 mm
Feature nameWidth (EF000008)
Feature value29 mm
Feature nameNominal current (EF000001)
Feature value8 A
