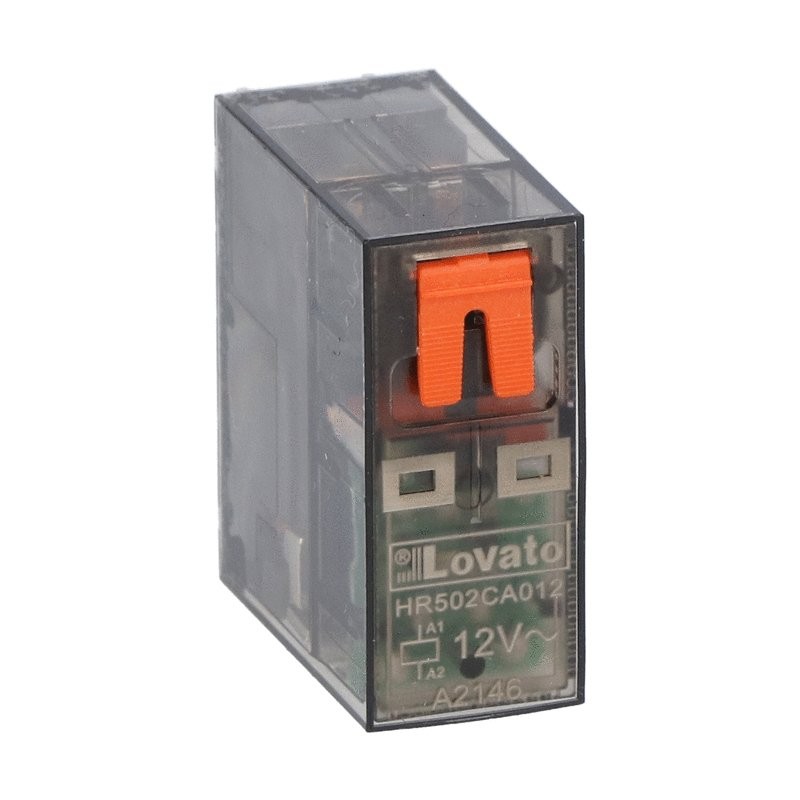

HR502CA012 LOVATO MINIATURE RELAY 2C/O 8A 12VAC + LED
HR502CA012
LOVATO ELECTRIC
MINIATURE RELAY 2C/O 8A 12VAC + LED
Miniature relay with LED state indicator and mechanical actuator, 12VAC, 8A, 2C/O contact. Fitting on socket HR5XS2...
Relays > Switching relay
Industrial relays
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲HR502CA012
Miniature relay with LED state indicator and mechanical actuator, 12VAC, 8A, 2C/O contact. Fitting on socket HR5XS2...
Technical specifications
- Type of product:
- Miniature relays
- Type of contacts:
- 2 C/O
- Relay control voltage:
- 12VAC
- IEC Conventional free air thermal current Ith [A]:
- 8
- LED state indicator:
- Yes
- Mechanical actuator:
- Yes
| Order code | HR502CA012 |
|---|---|
| Weight [g] | 19.4 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | |
| Volume [cm³] | 31.426 |
| Bar code [EAN13] | 8013975296189 |
| HS Code | 85364900 |
| Feature Name | Feature Value |
|---|---|
| Material of contact insert (EF008521) | Other |
| Voltage type for actuating (EF008242) | AC |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Plug-in connection |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarity free |
| Rated control supply voltage AC 60 Hz (EF003979) | 12 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 12 V |
| With LED indication (EF005950) | Yes |
| Complete with socket (EF003359) | No |
| With forced-guided contacts (EF003357) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Depth (EF000049) | 13 mm |
| Height (EF000040) | 25.5 mm |
| Width (EF000008) | 29 mm |
| Nominal current (EF000001) | 8 A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
