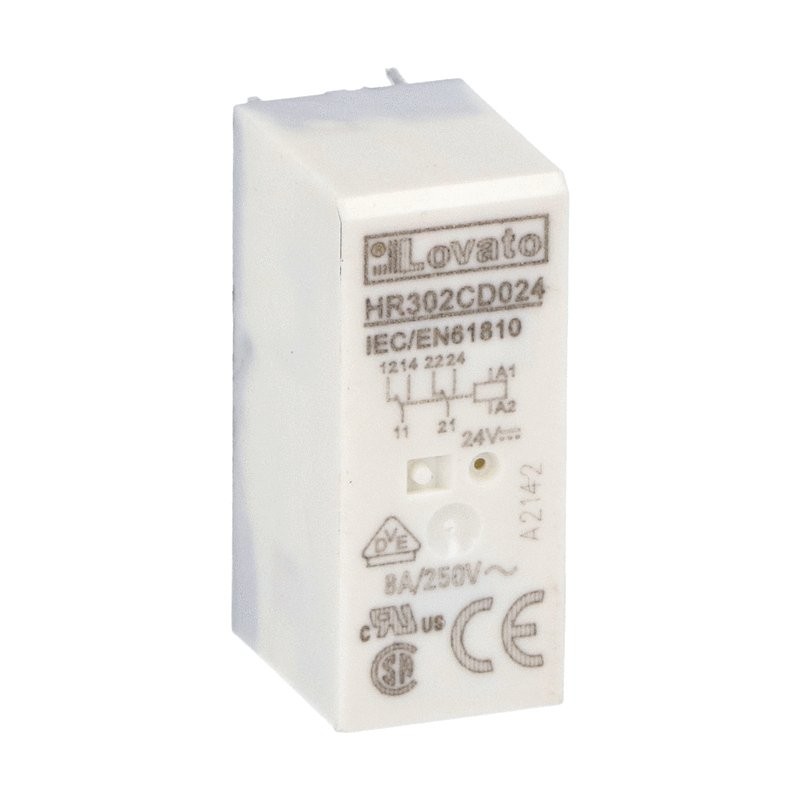

LOVATO ELECTRIC HR302CD024 HR302CD024 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HR302CD024 LOVATO Relay miniature 2 Switched 10A, 24VDC

Reference: HR302CD024

Manufacturer: LOVATO ELECTRIC

Description:

Relay miniature 2 Switched 10A, 24VDC
MINIATURE RELAY 2C/O 8A, 24VDC
Miniature relay, 24VDC, 8A, 2C/O contact. Fitting on socket HR5XS2...

Categories:

  • Relays > Switching relay
  • LOVATO ELECTRIC > Industrial relays

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 4,07 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HR302CD024

Miniature relay, 24VDC, 8A, 2C/O contact. Fitting on socket HR5XS2...

Technical specifications

Type of product:
Miniature relays
Type of contacts:
2 C/O
Relay control voltage:
24VDC
IEC Conventional free air thermal current Ith [A]:
8
LED state indicator:
No
Mechanical actuator:
No
Order codeHR302CD024
Weight [g]16
Qty. per package20
Multiple qty. of packs per order20
Package dimensions [mm]315X260X240
Volume [cm³]19.656
Bar code [EAN13]8013975233337
HS Code85364900

5.01 £

ETIM for HR302CD024 Relays (EC001437)

Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valuePlug-in connection
Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameDrive, polarization (EF003355)
Feature valuePolarity free
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value2
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameDepth (EF000049)
Feature value12.7 mm
Feature nameHeight (EF000040)
Feature value15.7 mm
Feature nameWidth (EF000008)
Feature value29 mm
Feature nameNominal current (EF000001)
Feature value8 A
