HR302CA024
LOVATO ELECTRIC
1

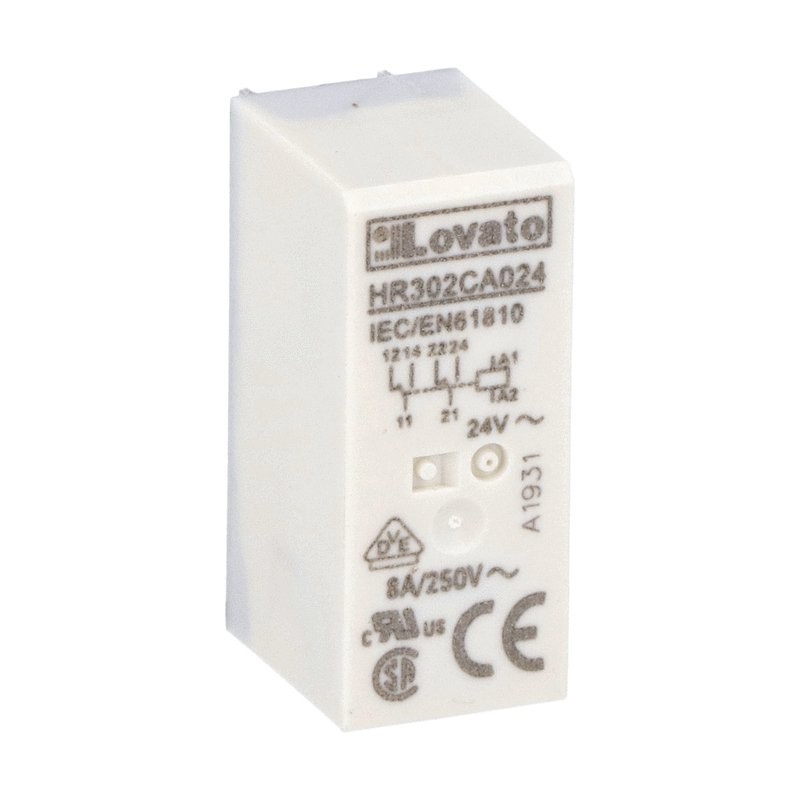

Relay miniature 2 Switched 10A, 24VAC
MINIATURE RELAY 2C/O 8A, 24VAC
Miniature relay, 24VAC, 8A, 2C/O contact. Fitting on socket HR5XS2...
Industrial relays
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Order code | HR302CA024 |
Weight [g] | 15.53 |
Qty. per package | 20 |
Multiple qty. of packs per order | 20 |
Package dimensions [mm] | 315X260X240 |
Volume [cm³] | 19.656 |
Bar code [EAN13] | 8013975233344 |
HS Code | 85365080 |
Product designation | MINIATURE RELAYS | |||
Product type designation | HR302C | |||
Contact characteristics | ||||
Contact configuration | 2 C/O | |||
Rated insulation voltage Ui IEC/EN | V | 250 | ||
Rated impulse withstand voltage Uimp | kV | 6 | ||
IEC Conventional free air thermal current Ith | A | 8 | ||
Maximum instantaneous current | A | 20 | ||
Rated current (In) | A | 8 | ||
Relay control voltage | V | 24VAC | ||
Max contrallable power in | ||||
AC-1 | W | 2000 | ||
AC-15 | VA | 150 | ||
Rated operating power AC-1 | ||||
VA | 2000 | |||
Rated operating power AC-15 | ||||
230 VAC | VA | 150 | ||
Single-phase motor control | ||||
230VAC | kW | 0.2 | ||
Rated operating current DC-1 | ||||
30V | A | 8 | ||
110V | A | 0.3 | ||
220V | A | 0.1 | ||
Minimum switching load | V / mA | 5 / 100 | ||
Contact impedance | mΩ | 100 | ||
Contact material | AgSnO2 | |||
Operating times | ||||
Closing | ms | 10 | ||
Opening | ms | 5 | ||
Operations | ||||
Mechanical life | cycles | 10000000 | ||
Electrical life AC1 | cycles | 50000 | ||
Coil characteristics | ||||
Average coil consumption AC at 20°C | VA | 0.9 | ||
Average coil consumption DC at 20°C | W | 0.45 | ||
Operating range | ||||
Closing | % Un | 70…110 | ||
Opening | % Un | 20…55 | ||
Maximum cycle frequency | cycles/h | 3600 | ||
Mechanical features | ||||
Max socket terminal tightening torque | Nm | 0.6 | ||
Socket screw tightening tool (cross / flat blade) | PH1 / 4.5mm | |||
Conductor section | ||||
AWG/Kcmil | ||||
min | 20 | |||
max | 14 | |||
IEC | ||||
min | mm² | 0.5 | ||
max | mm² | 2.5 | ||
Operating position | ||||
normal | Any | |||
Fixing | On 35mm DIN rail and with screw | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -40 | ||
max | °C | +85 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +85 | ||
Other features | ||||
Indication | No | |||
Mechanical contact position indicator | No | |||
Mechanical test actuator | No | |||
ETIM classification | ||||
ETIM 8.0 | EC001437 - Switching relay |
