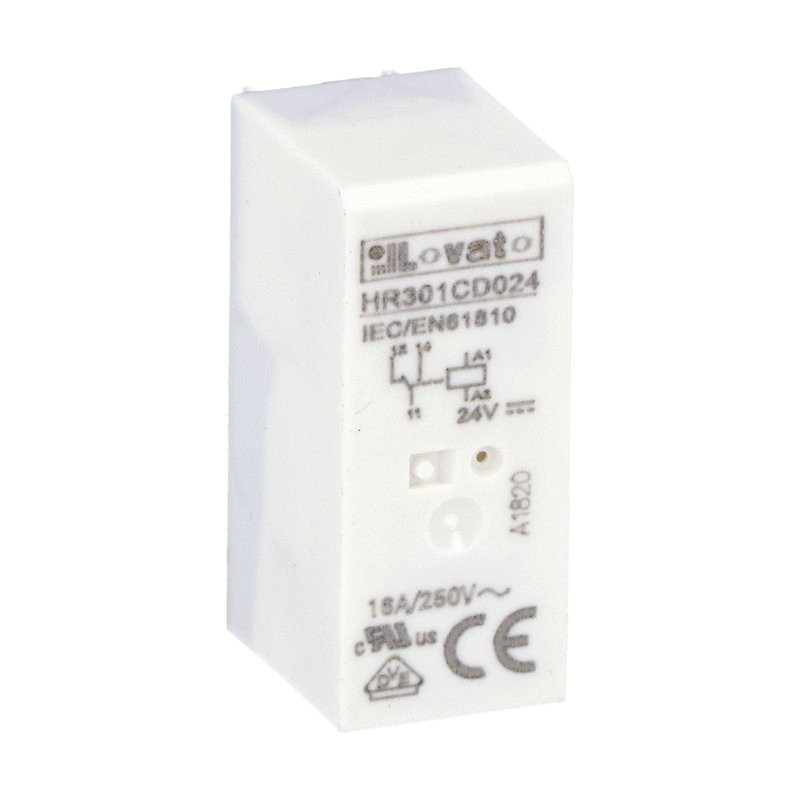

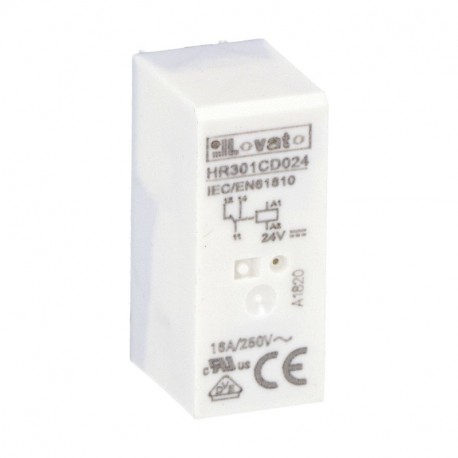

HR301CD024 LOVATO Relay miniature 1 Switched 16A, 24VDC
HR301CD024
LOVATO ELECTRIC
Relay miniature 1 Switched 16A, 24VDC
MINIATURE RELAY 1C/O 16A, 24VDC
Miniature relay, 24VDC, 16A, 1C/O contact. Fitting on socket HR5XS2... (max 10A)
MINIATURE RELAY, 24VDC, 16A, 1C/O CONTACT. FITTING ON SOCKET 20 HR5XS2... (MAX 10A)
Relays > Switching relay
Industrial relays
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲HR301CD024
Miniature relay, 24VDC, 16A, 1C/O contact. Fitting on socket HR5XS2... (max 10A)
Technical specifications
- Type of product:
- Miniature relays
- Type of contacts:
- 1 C/O
- Relay control voltage:
- 24VDC
- IEC Conventional free air thermal current Ith [A]:
- 16
- LED state indicator:
- No
- Mechanical actuator:
- No
| Order code | HR301CD024 |
|---|---|
| Weight [g] | 16.08 |
| Qty. per package | 20 |
| Multiple qty. of packs per order | 20 |
| Package dimensions [mm] | 315X260X240 |
| Volume [cm³] | 19.656 |
| Bar code [EAN13] | 8013975233283 |
| HS Code | 85364900 |
4.03 £
| Feature Name | Feature Value |
|---|---|
| Material of contact insert (EF008521) | Other |
| Voltage type for actuating (EF008242) | DC |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Plug-in connection |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarity free |
| Rated control supply voltage DC (EF003980) | 24 V |
| With LED indication (EF005950) | No |
| Complete with socket (EF003359) | No |
| With forced-guided contacts (EF003357) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Depth (EF000049) | 12.7 mm |
| Height (EF000040) | 15.7 mm |
| Width (EF000008) | 29 mm |
| Nominal current (EF000001) | 16 A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
