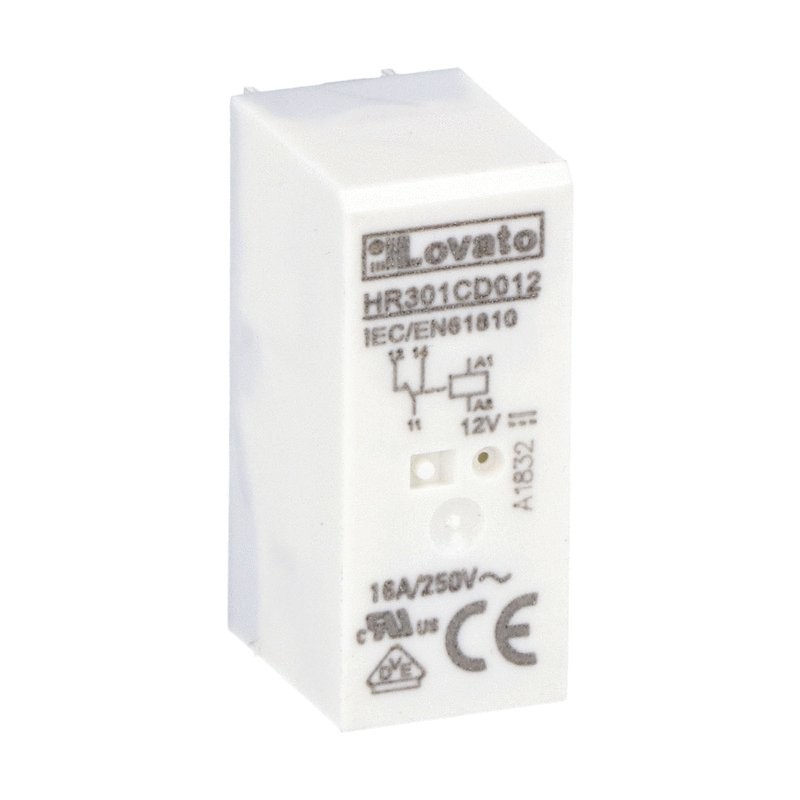

HR301CD012 LOVATO Relay miniature 1 Switched 16A, 12VDC
HR301CD012
LOVATO ELECTRIC
Relay miniature 1 Switched 16A, 12VDC
MINIATURE RELAY 1C/O 16A, 12VDC
Miniature relay, 12VDC, 16A, 1C/O contact. Fitting on socket HR5XS2... (max 10A)
Industrial relays
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | HR301CD012 |
| Weight [g] | 17.07 |
| Qty. per package | 20 |
| Multiple qty. of packs per order | 20 |
| Package dimensions [mm] | 315X260X240 |
| Volume [cm³] | 19.656 |
| Bar code [EAN13] | 8013975233276 |
| HS Code | 85365080 |
Dimensions
Wiring diagram
Certifications:
cURus
EAC
VDE
CSA
cURus
EAC
VDE
CSA
Compliance:
IEC/EN 61810
IEC/EN 61810
| Product designation | MINIATURE RELAYS | |||
| Product type designation | HR301C | |||
| Contact characteristics | ||||
| Contact configuration | 1 C/O | |||
| Rated insulation voltage Ui IEC/EN | V | 250 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| IEC Conventional free air thermal current Ith | A | 16 | ||
| Maximum instantaneous current | A | 60 | ||
| Rated current (In) | A | 16 | ||
| Relay control voltage | V | 12VDC | ||
| Max contrallable power in | ||||
| AC-1 | W | 4000 | ||
| AC-15 | VA | 300 | ||
| Rated operating power AC-1 | ||||
| VA | 4000 | |||
| Rated operating power AC-15 | ||||
| 230 VAC | VA | 300 | ||
| Single-phase motor control | ||||
| 230VAC | kW | 0.4 | ||
| Rated operating current DC-1 | ||||
| 30V | A | 12 | ||
| 110V | A | 0.3 | ||
| 220V | A | 0.1 | ||
| Minimum switching load | V / mA | 5 / 100 | ||
| Contact impedance | mΩ | 100 | ||
| Contact material | AgSnO2 | |||
| Operating times | ||||
| Closing | ms | 10 | ||
| Opening | ms | 5 | ||
| Operations | ||||
| Mechanical life | cycles | 10000000 | ||
| Electrical life AC1 | cycles | 50000 | ||
| Coil characteristics | ||||
| Average coil consumption AC at 20°C | VA | 0.9 | ||
| Average coil consumption DC at 20°C | W | 0.45 | ||
| Operating range | ||||
| Closing | % Un | 75…110 | ||
| Opening | % Un | 10…30 | ||
| Maximum cycle frequency | cycles/h | 3600 | ||
| Mechanical features | ||||
| Max socket terminal tightening torque | Nm | 0.6 | ||
| Socket screw tightening tool (cross / flat blade) | PH1 / 4.5mm | |||
| Conductor section | ||||
| AWG/Kcmil | ||||
| min | 20 | |||
| max | 14 | |||
| IEC | ||||
| min | mm² | 0.5 | ||
| max | mm² | 2.5 | ||
| Operating position | ||||
| normal | Any | |||
| Fixing | On 35mm DIN rail and with screw | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| Other features | ||||
| Indication | No | |||
| Mechanical contact position indicator | No | |||
| Mechanical test actuator | No | |||
| ETIM classification | ||||
| ETIM 8.0 | EC001437 - Switching relay | |||
