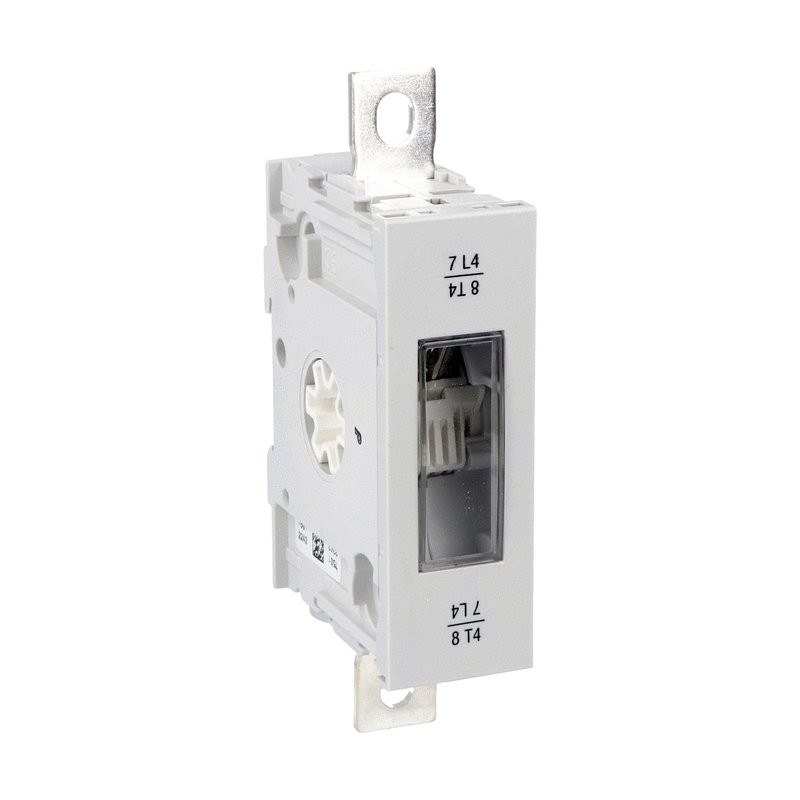

GLX420315 LOVATO Fourth pole for additional GL0160-315 IEC/en
GLX420315
LOVATO ELECTRIC
Fourth pole for additional GL0160-315 IEC/en
4TH POLE FOR GL SWITCH DISC. 160-315A
Fourth pole add-on, simultaneous closing operation as switch disconnector poles, IEC/EN. For GL0160C1...GL0315C1 versions
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Often bought together
▲Best sellers
▲More info
▲| Order code | GLX420315 |
| Weight [g] | 401.1 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 164X080X042 |
| Volume [cm³] | 551.04 |
| Bar code [EAN13] | 8013975228555 |
| HS Code | 85365080 |
EAC
IEC/EN 60947-3
IEC/EN 60947-1
| Product designation | Fourth pole | |||
| Product type designation | GLX42 | |||
| Number of poles | Nr. | 1 | ||
| Operating voltage type | AC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 315 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 12 | ||
| Operating current Ie | ||||
| AC21A | ||||
| 400V | A | 315 | ||
| 500V | A | 315 | ||
| 690V | A | 315 | ||
| AC22A | ||||
| 400V | A | 315 | ||
| 500V | A | 315 | ||
| 690V | A | 315 | ||
| AC23A | ||||
| 400V | A | 315 | ||
| 500V | A | 250 | ||
| 690V | A | 250 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002498 - Accessories/spare parts for low-voltage switch technology | |||
Datasheet - PDF
