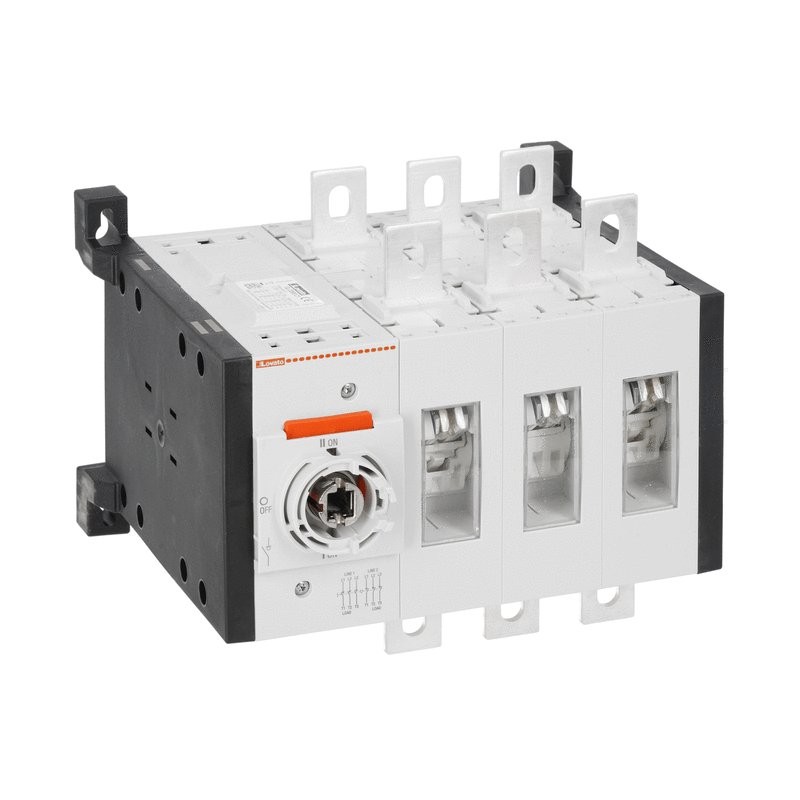

GLC0320C1 LOVATO Tetrapolar switch back cabinet 160A AC21A C1
GLC0320C1
LOVATO ELECTRIC
Tetrapolar switch back cabinet 160A AC21A C1
Three-pole changeover switch, IEC/EN, 320A
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | GLC0320C1 |
| Weight [g] | 7180 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 290X200X250 |
| Volume [cm³] | 14500 |
| Bar code [EAN13] | 8013975267097 |
| HS Code | 85365080 |
Dimensions
Wiring diagram
Certifications:
Compliance:
IEC/EN 60947-3
IEC/EN 60947-6-1
IEC/EN 60947-1
IEC/EN 60947-3
IEC/EN 60947-6-1
IEC/EN 60947-1
| Product designation | Changeover switch | |||
| Product type designation | GLC | |||
| Number of poles | Nr. | 3 | ||
| Operating voltage type | AC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 320 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 12 | ||
| Operating current Ie | ||||
| AC31B | ||||
| 400V | A | 320 | ||
| 500V | A | 320 | ||
| 690V | A | 320 | ||
| AC32B | ||||
| 400V | A | 320 | ||
| 500V | A | 320 | ||
| 690V | A | 320 | ||
| AC33B | ||||
| 400V | A | 320 | ||
| 500V | A | 320 | ||
| 690V | A | 320 | ||
| Power dissipation per pole max | W | 20.8 | ||
| Rated operational power AC23A | ||||
| 400V | kW | 160 | ||
| 690V | kW | 315 | ||
| Reactive power for control of capacitors at | ||||
| Rated short time current (1s) Icw (rms) | kA | 15 | ||
| Conditional short-circuit current (rms) | kA | 80 | ||
| Short-circuit protection with fuse | Class/A | gG/355 | ||
| Making capacity AC23A 400V | A | 3200 | ||
| Breaking capacity AC23A 400V | A | 2560 | ||
| Mechanical life | cycles | 10000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Fixing | Screw | |||
| Terminals | ||||
| type | M10 x 25 | |||
| Tightening torque for terminals | ||||
| min | Nm | 30 | ||
| max | Nm | 37 | ||
| min | Ibin | 265 | ||
| max | Ibin | 327 | ||
| Conductor section | ||||
| IEC min | mm² | 1X182 | ||
| IEC max | mm² | 2X185 | ||
| AWG/kcmil min | 1X400 | |||
| AWG/kcmil max | 2X350 | |||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Max altitude | m | 3000 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000216 - Switch disconnector | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
