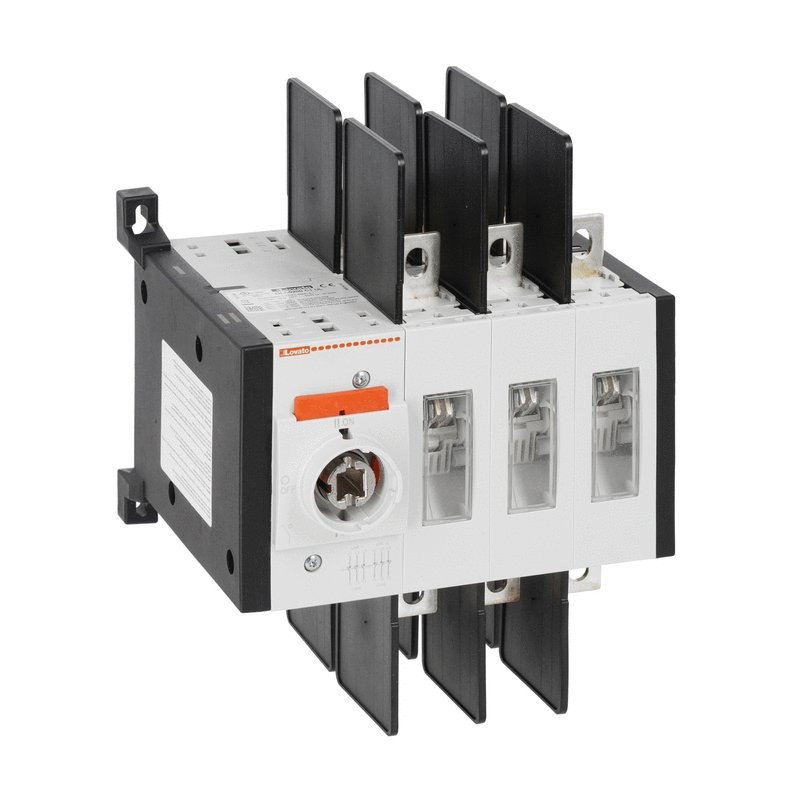

GLC0200C1UL LOVATO Switch Tripolar bottom cabinet 200A AC21A C1 UL1008
GLC0200C1UL
LOVATO ELECTRIC
Switch Tripolar bottom cabinet 200A AC21A C1 UL1008
3P CHANGEOVER SWITCH 200A UL C1
Three-pole changeover switch, UL1008, 200A
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | GLC0200C1UL |
| Weight [g] | 3795.18 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 245X227X200 |
| Volume [cm³] | 11123 |
| Bar code [EAN13] | 8013975242179 |
| HS Code | 85365080 |
Dimensions
Wiring diagram
Certifications:
cULus
cULus
Compliance:
IEC/EN 60947-3
IEC/EN 60947-6-1
IEC/EN 60947-1
IEC/EN 60947-3
IEC/EN 60947-6-1
IEC/EN 60947-1
| Product designation | Changeover Switch | |||
| Product type designation | GLC UL | |||
| Number of poles | Nr. | 3 | ||
| Operating voltage type | AC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 200 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 12 | ||
| Operating current Ie | ||||
| AC31B | ||||
| 400V | A | 200 | ||
| 500V | A | 200 | ||
| 690V | A | 200 | ||
| AC32B | ||||
| 400V | A | 200 | ||
| 500V | A | 200 | ||
| 690V | A | 200 | ||
| AC33B | ||||
| 400V | A | 200 | ||
| 500V | A | 200 | ||
| 690V | A | 200 | ||
| Power dissipation per pole max | W | 4 | ||
| Rated operational power AC23A | ||||
| 400V | kW | 110 | ||
| 690V | kW | 200 | ||
| Rated short time current (1s) Icw (rms) | kA | 6 | ||
| Rated short time current (0.3s) Icw (rms) | kA | 12 | ||
| Conditional short-circuit current (rms) | kA | 100 | ||
| Short-circuit protection with fuse | Class/A | J/200 | ||
| Making capacity AC23A 400V | A | 2000 | ||
| Breaking capacity AC23A 400V | A | 1600 | ||
| Mechanical life | cycles | 20000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Fixing | Screw | |||
| Terminals | ||||
| type | M8 x 20 | |||
| Tightening torque for terminals | ||||
| min | Nm | 15 | ||
| max | Nm | 22 | ||
| min | lbin | 132 | ||
| max | lbin | 194 | ||
| Conductor section | ||||
| IEC min | mm² | 70 | ||
| IEC max | mm² | 85 | ||
| AWG/kcmil min | 00 | |||
| AWG/kcmil max | 400 | |||
| UL technical data | ||||
| UL Standard | UL1008 | |||
| General purpose current rating | A | 200 | ||
| Operating voltage max | V | 600 | ||
| Horsepower/FLA current three phase motor | ||||
| 240V | HP | 75/192 | ||
| 480V | HP | 150/180 | ||
| 600V | HP | 200/192 | ||
| Short circuit rating | kA rms | 200 | ||
| Short circuit rating with fuse | Class/A | J/200 | ||
| UL Terminal kit lugs | GLX500 - GLX501 | |||
| Minimum enclosure dimensions at rated current | ||||
| mm | mm | 400 x 250 x 150 | ||
| in | in | 15.8 x 9.9 x 5.9 | ||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Max altitude | m | 3000 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000216 - Switch disconnector | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
