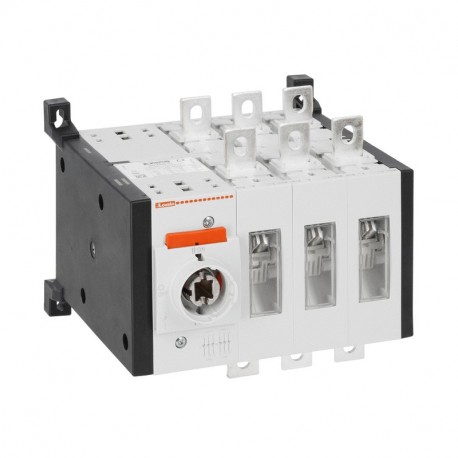

GLC0200C1 LOVATO 3P CHANGEOVER SWITCH 200A AC21A C1
GLC0200C1
LOVATO ELECTRIC
3P CHANGEOVER SWITCH 200A AC21A C1
Three-pole changeover switch, IEC/EN, 200A
Low-voltage industrial components > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲GLC0200C1
Three-pole changeover switch, IEC/EN, 200A
Technical specifications
- Type of product:
- Changeover switches
- Number of poles:
- 3
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 200
- Type of installation:
- Screw on plate
| Order code | GLC0200C1 |
|---|---|
| Weight [g] | 3548.4 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X227X200 |
| Volume [cm³] | 7264 |
| Bar code [EAN13] | 8013975242162 |
| HS Code | 85365080 |
511.59 £
| Feature Name | Feature Value |
|---|---|
| Rated operating voltage (EF001435) | 400 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 200 A |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Version as reversing switch (EF009408) | No |
| Voltage release optional (EF007491) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for front mounting 4-hole (EF007247) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as main switch (EF006981) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Interlockable (EF006281) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Type of control element (EF006976) | Door coupling rotary drive |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
