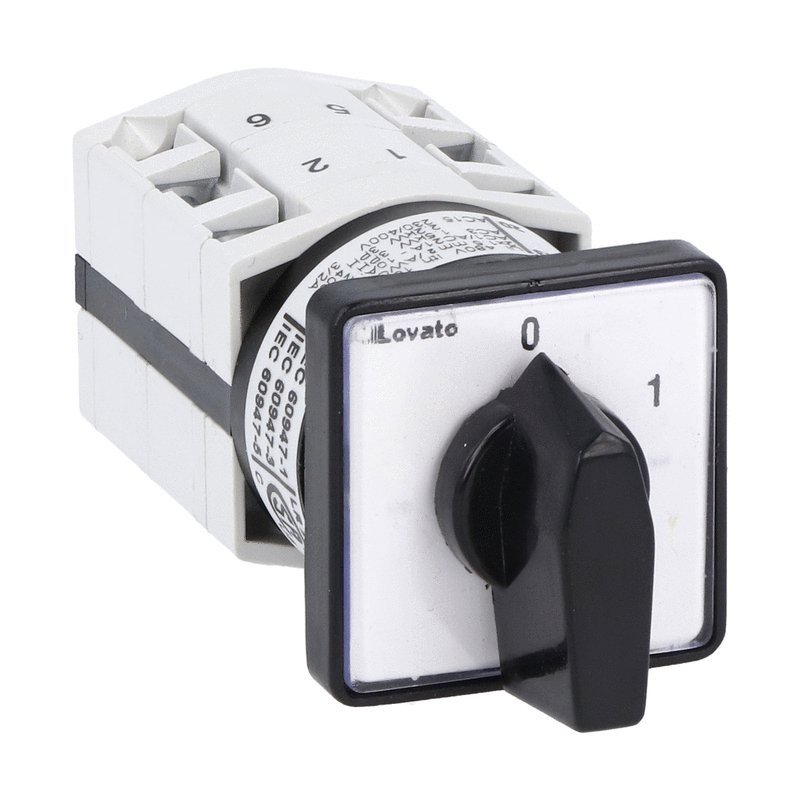

GF1090U LOVATO ON-OFF SWITCH 1P 10A FRONT MOUNT 30X30
GF1090U
LOVATO ELECTRIC
ON-OFF SWITCH 1P 10A FRONT MOUNT 30X30
Rotary cam switch GF series, ON-OFF switch 1 pole 10A, for front mounting with black handle, front plate 30X30mm
ROTARY CAM SWITCH GF SERIES, ON-OFF SWITCH 1 POLE 10A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 30X30MM
Low-voltage industrial components > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲GF1090U
Rotary cam switch GF series, ON-OFF switch 1 pole 10A, for front mounting with black handle, front plate 30X30mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 90 - ON/OFF switch 1 pole
- IEC Conventional free air thermal current Ith [A]:
- 10
- Mounting form:
- U - Front mounting with black handle
- Series:
- GF - compact series
| Order code | GF1090U |
|---|---|
| Weight [g] | 42 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 030X030X070 |
| Volume [cm³] | 63 |
| Bar code [EAN13] | 3850144002746 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP40 |
| Type of electric connection (EF003961) | Screw connection |
| With front ring (EF006014) | No |
| With light source (EF005905) | No |
| Spring-return (EF001407) | No |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of switch positions (EF000231) | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
