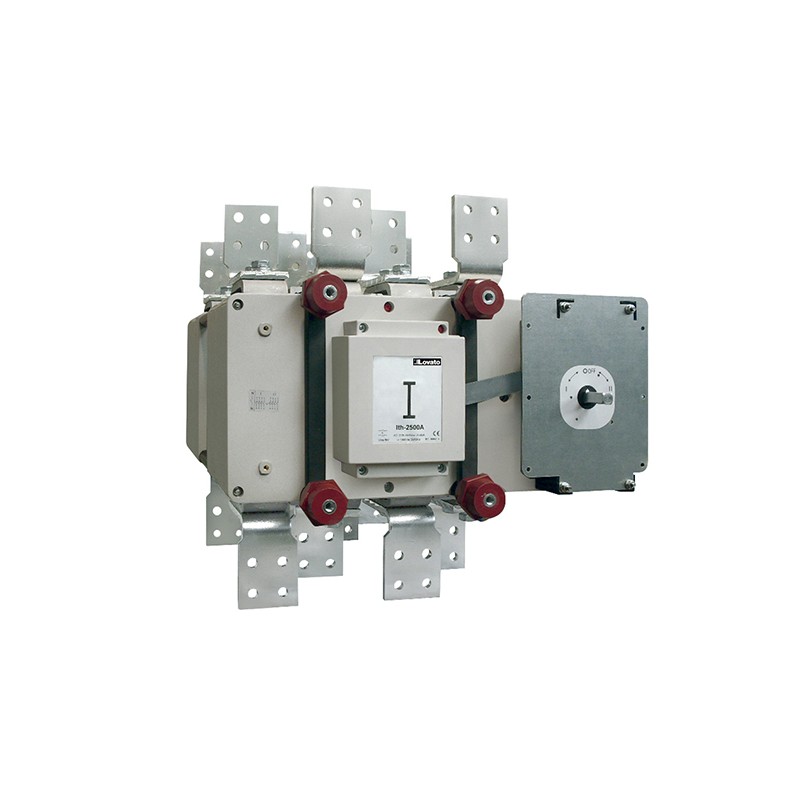

GE2500ET4 LOVATO 4P CHANGEOVER SWITCH AC21A 2500A
GE2500ET4
LOVATO ELECTRIC
4P CHANGEOVER SWITCH AC21A 2500A
Four-pole changeover switch, 2500A
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
More info
▲| Order code | GE2500ET4 |
| Weight [g] | 119000 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 700X710X900 |
| Volume [cm³] | 447300 |
| Bar code [EAN13] | 8013975245842 |
| HS Code | 85365080 |
Wiring diagram
Certifications:
EAC
EAC
Compliance:
IEC/EN 60947-1
IEC/EN 60947-3
IEC/EN 60947-1
IEC/EN 60947-3
| Product designation | Changeover switch | |||
| Product type designation | GE | |||
| Number of poles | Nr. | 4 | ||
| Operating voltage type | AC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 2500 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operating current Ie | ||||
| AC21A | ||||
| 400V | A | 2500 | ||
| 500V | A | 2500 | ||
| 690V | A | 2500 | ||
| AC22A | ||||
| 400V | A | 2500 | ||
| 500V | A | 2000 | ||
| 690V | A | 1800 | ||
| AC23A | ||||
| 400V | A | 1800 | ||
| 500V | A | 1250 | ||
| 690V | A | 1000 | ||
| Power dissipation per pole max | W | 213 | ||
| Rated operational power AC23A | ||||
| 400V | kW | 956 | ||
| 690V | kW | 956 | ||
| Reactive power for control of capacitors at | ||||
| Rated short time current (1s) Icw (rms) | kA | 50 | ||
| Making capacity AC23A 400V | A | 18000 | ||
| Breaking capacity AC23A 400V | A | 14400 | ||
| Mechanical life | cycles | 600 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Fixing | Screw | |||
| Terminals | ||||
| type | Bar | |||
| screw | M12 | |||
| Tightening torque for terminals | ||||
| max | Nm | 45 | ||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Max altitude | m | 3000 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000216 - Switch disconnector | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
