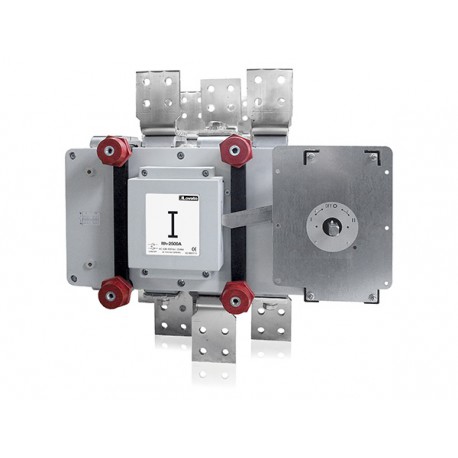

GE2500E LOVATO 3P CHANGEOVER SWITCH AC21A 2500A

Name: GE2500E LOVATO 3P CHANGEOVER SWITCH AC21A 2500A
Brand: LOVATO ELECTRIC
SKU: LOVGE2500E
Price: 10780.16 USD
Availability: OutOfStock

Reference: GE2500E

Manufacturer: LOVATO ELECTRIC

Description:

3P CHANGEOVER SWITCH AC21A 2500A

Three-pole changeover switch, 2500A

THREE-POLE CHANGEOVER SWITCH, 2500A

Categories:

Low-voltage industrial components > Switch disconnector
LOVATO ELECTRIC > Switch disconnectors - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 9.630,13 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 2 weeks.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Order code	GE2500E
Weight [g]	11900
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	700X710X900
Volume [cm³]	447300
Bar code [EAN13]	8013975245835
HS Code	85365080

Wiring diagram

Certifications:
EAC

Compliance:
IEC/EN 60947-1
IEC/EN 60947-3

Product designation				Changeover switch
Product type designation				GE
Number of poles			Nr.	3
Operating voltage type				AC
Contact characteristics
IEC Conventional free air thermal current Ith			A	2500
Rated insulation voltage Ui IEC/EN			V	1000
Rated impulse withstand voltage Uimp			kV	8
Operating current Ie
	AC21A
		400V	A	2500
		500V	A	2500
		690V	A	2500
	AC22A
		400V	A	2500
		500V	A	2000
		690V	A	1800
	AC23A
		400V	A	1800
		500V	A	1250
		690V	A	1000
Power dissipation per pole max			W	213
Rated operational power AC23A
		400V	kW	956
		690V	kW	956
Reactive power for control of capacitors at
Rated short time current (1s) Icw (rms)			kA	50
Making capacity AC23A 400V			A	18000
Breaking capacity AC23A 400V			A	14400
Mechanical life			cycles	600
Mechanical features
Operating position
		normal		Vertical plan
		allowable		Any
Fixing				Screw
Terminals
		type		Bar
		screw		M12
Tightening torque for terminals
		max	Nm	45
Ambient conditions
Operating temperature
		min	°C	-25
		max	°C	+55
Storage temperature
		min	°C	-40
		max	°C	+70
Max altitude			m	3000
ETIM classification
ETIM 8.0				EC000216 - Switch disconnector

ETIM for GE2500E Low-voltage industrial controls and switchgear (EC000216)

Feature nameDevice construction (EF008240)

Feature valueBuilt-in device fixed built-in technique

Feature nameType of control element (EF006976)

Feature valueDoor coupling rotary drive

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameRated operating voltage (EF001435)

Feature value400 V

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueNo

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameSuitable for distribution board installation (EF007262)

Feature valueNo

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueNo

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameInterlockable (EF006281)

Feature valueNo

Feature nameRated permanent current at AC-23, 400 V (EF011777)

Feature value1800 A

Feature nameRated permanent current at AC-21, 400 V (EF009165)

Feature value2500 A

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value690 V

Feature nameRated short-time withstand current lcw (EF007050)

Feature value50 kA

Feature nameRated operation power at AC-23, 400 V (EF007027)

Feature value997 kW

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameConditioned rated short-circuit current Iq (EF001444)

Feature value100 kA

Feature nameNumber of poles (EF001391)

Feature value3

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0
