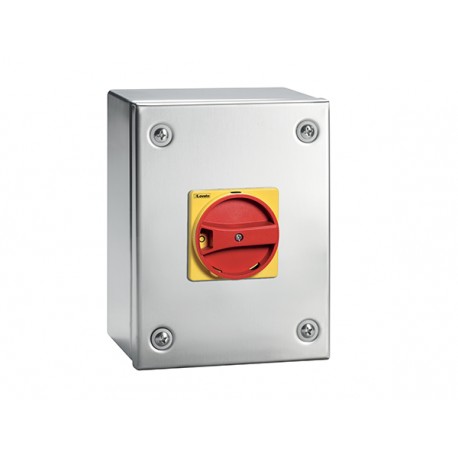

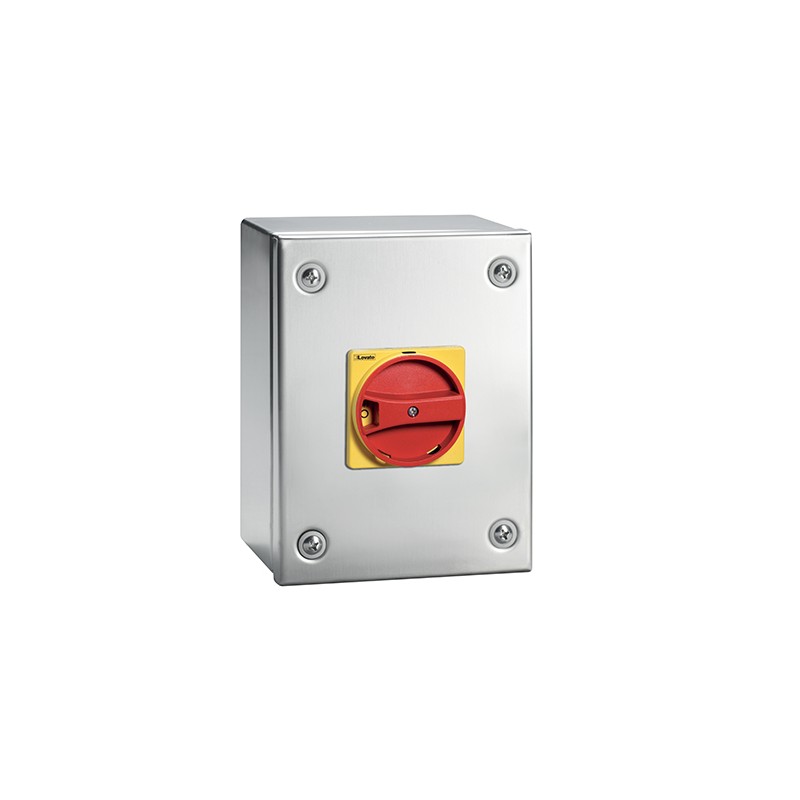

GAZS016 LOVATO 3P SWITCH 16A-ST/ST ENCL-R/Y HANDLE
GAZS016
LOVATO ELECTRIC
3P SWITCH 16A-ST/ST ENCL-R/Y HANDLE
IEC/EN type IP65 stainless steel AISI 304 enclosure switch disconnector, three-pole. With rotating red/yellow handle, 16A
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | GAZS016 |
| Weight [g] | 2053 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 210X170X170 |
| Volume [cm³] | 6069 |
| Bar code [EAN13] | 8013975235539 |
| HS Code | 85365080 |
IEC/EN 60947-3
IEC/EN 60947-1
| Product designation | Enclosed switch disconnector | |||
| Product type designation | GAZS | |||
| Number of poles | Nr. | 3 | ||
| Operating voltage type | AC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 16 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operating current Ie | ||||
| AC21A | ||||
| 400V | A | 16 | ||
| 500V | A | 16 | ||
| 690V | A | 16 | ||
| AC22A | ||||
| 400V | A | 16 | ||
| 500V | A | 16 | ||
| 690V | A | 16 | ||
| AC23A | ||||
| 400V | A | 16 | ||
| 500V | A | 16 | ||
| 690V | A | 16 | ||
| Power dissipation per pole max | W | 0.2 | ||
| Rated operational power AC23A | ||||
| 400V | kW | 7.5 | ||
| 690V | kW | 11 | ||
| Conditional short-circuit current (rms) | kA | 10 | ||
| Short-circuit protection with fuse | Class/A | gG16 | ||
| Making capacity AC23A 400V | A | 400 | ||
| Breaking capacity AC23A 400V | A | 320 | ||
| Mechanical life | cycles | 100000 | ||
| Electrical life AC21A | cycles | 100000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Terminals | ||||
| type | Pillar | |||
| width | mm | 5.6 | ||
| height | mm | 6.5 | ||
| screw | M4 | |||
| tool | Phillips 2 | |||
| Tightening torque for terminals | ||||
| min | Nm | 1.8 | ||
| max | Nm | 2 | ||
| min | Ibin | 16 | ||
| max | Ibin | 18 | ||
| Conductor section | ||||
| IEC min | mm² | 0.75 | ||
| IEC max | mm² | 16 | ||
| AWG/kcmil min | 18 | |||
| AWG/kcmil max | 6 | |||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Frontal IP degree | IP65 | |||
| IP degree of protection | IP65 | |||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000216 - Switch disconnector | |||
