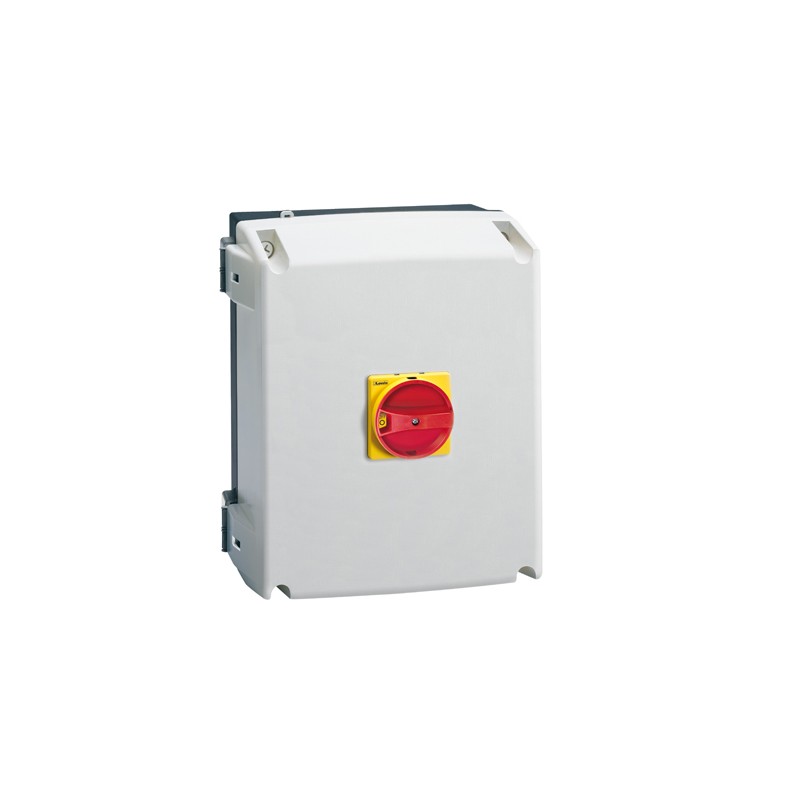

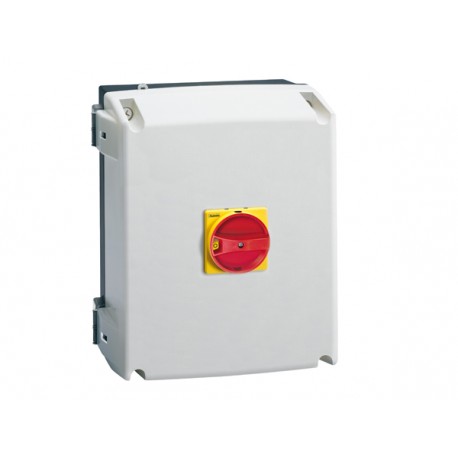

GAZ160 LOVATO IEC/EN TYPE IP65 NON-METALLIC ENCLOSURE SWITCH DISCONNECTOR, THREE POLE. WITH ROTATING RED/YEL..
GAZ160
LOVATO ELECTRIC
IEC/EN TYPE IP65 NON-METALLIC ENCLOSURE SWITCH DISCONNECTOR, THREE POLE. WITH ROTATING RED/YELLOW HANDLE, 160A
3P SWITCH 160A-ENCL.R/Y HAND.PADLOCK
IEC/EN type IP65 non-metallic enclosure switch disconnector, three-pole. With rotating red/yellow handle, 160A. Enclosure dimensions: 220x280x170mm/8.7x11x6.7''
Low-voltage industrial components > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲GAZ160
IEC/EN type IP65 non-metallic enclosure switch disconnector, three-pole. With rotating red/yellow handle, 160A. Enclosure dimensions: 220x280x170mm/8.7x11x6.7''
Technical specifications
- Type of product:
- Switch disconnectors
- Number of poles:
- 3
- Type of enclosure:
- Plastic enclosure - Red/Yellow handle
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 160
- Type of installation:
- Enclosed
| Order code | GAZ160 |
|---|---|
| Weight [g] | 1910 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 295X240X225 |
| Volume [cm³] | 15930 |
| Bar code [EAN13] | 8013975222423 |
| HS Code | 85365080 |
274.94 £
| Feature Name | Feature Value |
|---|---|
| Device construction (EF008240) | Complete device in housing |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Rated operating voltage (EF001435) | 400 V |
| Version as reversing switch (EF009408) | No |
| Voltage release optional (EF007491) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for front mounting 4-hole (EF007247) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as main switch (EF006981) | Yes |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | No |
| Interlockable (EF006281) | Yes |
| Rated permanent current at AC-23, 400 V (EF011777) | 125 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 160 A |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operation power at AC-23, 400 V (EF007027) | 55 kW |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Conditioned rated short-circuit current Iq (EF001444) | 50 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| GAZ160 GAZ160 11-Switch-disconnectors-11-January-2018_EN.pdf | 5 Mbytes |
|
