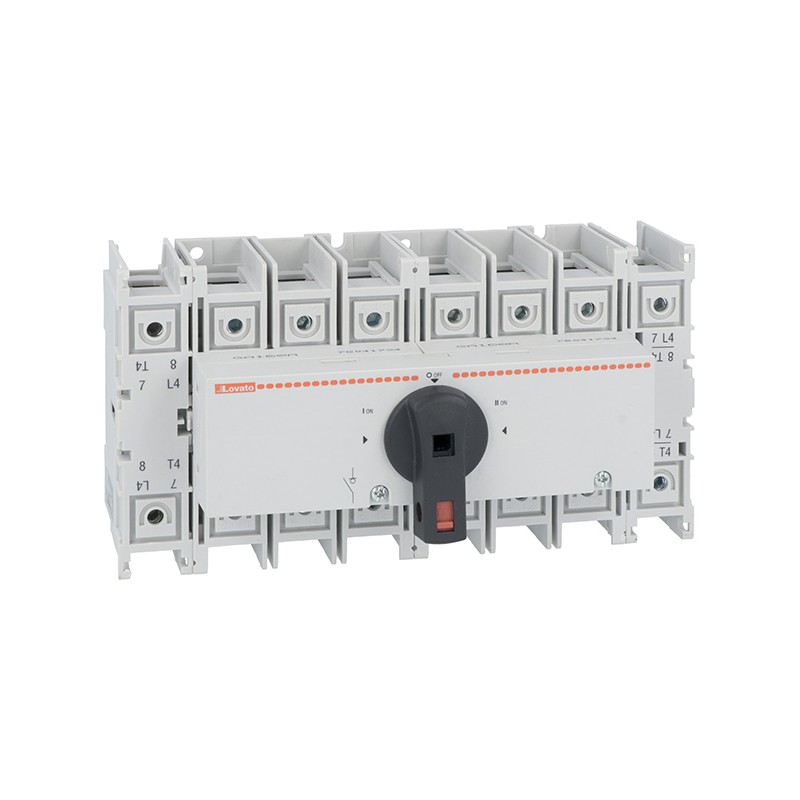

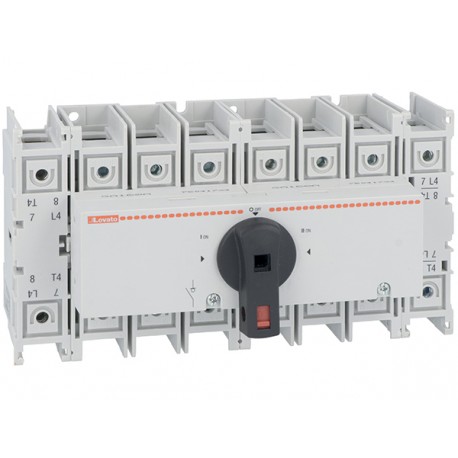

Tetrapolar Switch 125A Direct Control Black UL98
Four-pole assembled changeover switch, 125A
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Order code | GA125ET8 |
Weight [g] | 1139 |
Qty. per package | 1 |
Multiple qty. of packs per order | 1 |
Package dimensions [mm] | |
Volume [cm³] | |
Bar code [EAN13] | 8013975270301 |
HS Code | 85365080 |
Product designation | Assembled changeover switch | |||
Product type designation | GA | |||
Number of poles | Nr. | 4 | ||
Operating voltage type | AC | |||
Contact characteristics | ||||
IEC Conventional free air thermal current Ith | A | 125 | ||
Rated insulation voltage Ui IEC/EN | V | 1000 | ||
Rated impulse withstand voltage Uimp | kV | 8 | ||
Operating current Ie | ||||
AC21A | ||||
400V | A | 125 | ||
500V | A | 125 | ||
690V | A | 125 | ||
AC22A | ||||
400V | A | 125 | ||
500V | A | 125 | ||
690V | A | 125 | ||
AC23A | ||||
400V | A | 125 | ||
500V | A | 100 | ||
690V | A | 47 | ||
Power dissipation per pole max | W | 6.3 | ||
Rated operational power AC23A | ||||
400V | kW | 55 | ||
690V | kW | 45 | ||
Conditional short-circuit current (rms) | kA | 50 | ||
Short-circuit protection with fuse | Class/A | gG125 | ||
Making capacity AC23A 400V | A | 1250 | ||
Breaking capacity AC23A 400V | A | 1000 | ||
Mechanical life | cycles | 30000 | ||
Electrical life AC21A | cycles | 30000 | ||
Mechanical features | ||||
Operating position | ||||
normal | Vertical plan | |||
allowable | Any | |||
Fixing | Screw / DIN rail 35mm | |||
Terminals | ||||
type | Pillar | |||
width | mm | 12.4 | ||
height | mm | 10.4 | ||
screw | M8 | |||
tool | Metric Allen key 4 | |||
Tightening torque for terminals | ||||
min | Nm | 5 | ||
max | Nm | 6 | ||
min | Ibin | 3.75 | ||
max | Ibin | 4.5 | ||
Conductor section | ||||
IEC min | mm² | 4 | ||
IEC max | mm² | 70 | ||
AWG/kcmil min | 12 | |||
AWG/kcmil max | 1 | |||
Weight | g | 1133 | ||
Ambient conditions | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +55 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +70 | ||
Max altitude | m | 3000 | ||
Resistance & Protection | ||||
Frontal IP degree | IP20 | |||
Pollution degree | 3 | |||
ETIM classification | ||||
ETIM 8.0 | EC000216 - Switch disconnector |
