LOVATO ELECTRICFuse holders and fuses - LOVATO ELECTRICFE05D025 LOVATO FUSE 14X85 GPV 25A

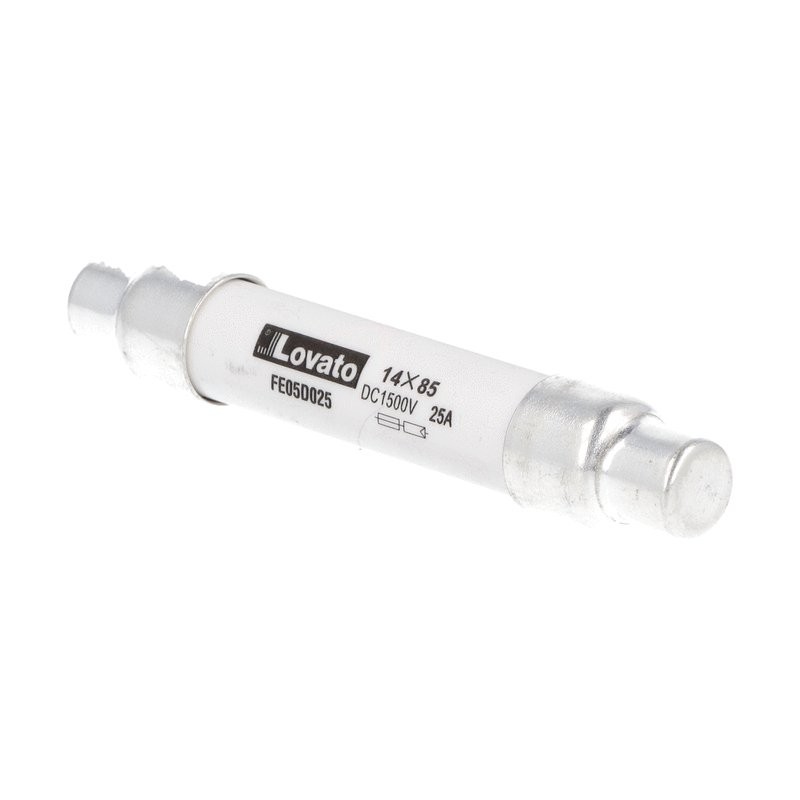

LOVATO ELECTRIC FE05D025 FE05D025 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

FE05D025 LOVATO FUSE 14X85 GPV 25A

Reference: FE05D025

Manufacturer: LOVATO ELECTRIC

Description:

FUSE 14X85 GPV 25A
Fuse for photovoltaic applications, for 14X85mm fuses. 10kA breaking capacity at 1500VDC, 25A
-

Categories:

  • Circuit breakers and fuses > Cylindrical fuse
  • LOVATO ELECTRIC > Fuse holders and fuses - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 25,43 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

FE05D025

Fuse for photovoltaic applications, for 14X85mm fuses. 10kA breaking capacity at 1500VDC, 25A

Technical specifications

Type of product:
Fuses for PV applications - 14x85mm
Type of operating voltage:
DC
IEC maximum rated voltage Un [V]:
1500
IEC maximum rated current In [A]:
25
Compliance:
IEC
For photovoltaic application:
Yes
Order codeFE05D025
Weight [g]31
Qty. per package5
Multiple qty. of packs per order5
Package dimensions [mm]145X085X015
Volume [cm³]36.975
Bar code [EAN13]8013975299807
HS Code85389099

ETIM for FE05D025 Circuit breakers and fuses (EC002704)

Feature nameUtilization category according to IEC 60269 (EF002572)
Feature valuegPV (photovoltaic protection)
Feature nameRelease characteristic (EF000889)
Feature valueOther
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameSize (EF000088)
Feature valueOther
Feature nameModel (EF000010)
Feature valueCeramic fuse
Feature namePower loss at rated current (EF012389)
Feature value6.4 W
Feature nameRated current (EF000227)
Feature value25 A
