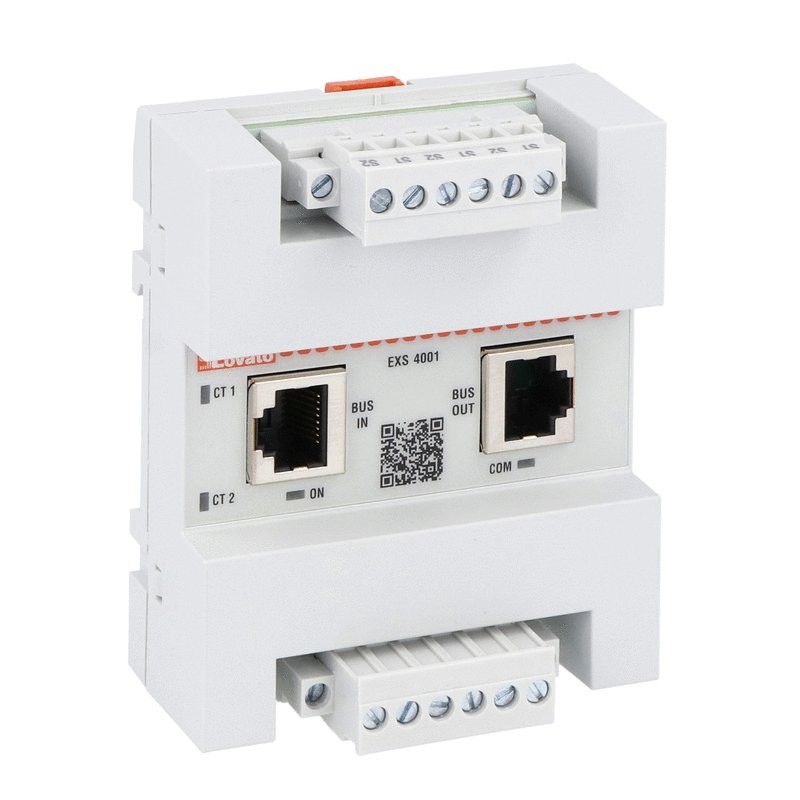

EXS4001 LOVATO SATELLITE WITH CT CURRENT INPUTS
EXS4001
LOVATO ELECTRIC
SATELLITE WITH CT CURRENT INPUTS
Current measuring module with 2 inputs for three-phase traditional CTs or 6 inputs for single-phase traditional CTs
Metering instruments and current transformers - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
More info
▲| Order code | EXS4001 |
| Weight [g] | 210 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 150X110X090 |
| Volume [cm³] | 1485 |
| Bar code [EAN13] | 8013975297599 |
| HS Code | 90303100 |
CE
UKCA
EAC
IEC/EN/BS 61010-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-4
IEC/BS 61557-12
| Product designation | Current measuring module | |||
| Product type designation | EXS4001 | |||
| Type | 2 current inputs | |||
| DIN rail module number | 4 | |||
| Current inputs | ||||
| Rated current (Ie) | A | 1A/5A | ||
| Measurement range | 0.004…6 | |||
| Current inputs operational frequency | ||||
| min | Hz | 45 | ||
| max | Hz | 66 | ||
| Type | Internal CT | |||
| Measurement method | TRMS | |||
| Overload capacity | 1.2 | |||
| Overload peak | A | 120A for 0.5s | ||
| Current | ||||
| IEC maximum (Imax) | A | 6 | ||
| IEC minimum (Imin) | A | 0.004 | ||
| Accuracy | ||||
| Measurement conditions (T +23°C ±1°C / Rel. Humidity 45 ±15% R.H.) | ||||
| current | Class 0.5 (IEC/EN 61557-12) | |||
| active power | Class 1 (IEC/EN 61557-12) | |||
| reactive power | Class 2 (IEC/EN 61557-12) | |||
| active energy | Class 1 (IEC/EN/BS 62053-21) | |||
| reactive energy | Class 2 (IEC/EN 62053-23) | |||
| THD | Class 5 (IEC/EN 61557-12) | |||
| 2nd 15th order harmonics | Class 5 (IEC/EN 61557-12) | |||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 600 | ||
| Rated impulse withstand voltage Uimp | kV | 9.6 | ||
| Operating frequency withstand voltage | kV | 5.4 | ||
| Mechanical features | ||||
| Housing type | Polyamide | |||
| Terminals type | Screw | |||
| Conductor cross section | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 2.5 | ||
| min | AWG | 24 | ||
| Max | AWG | 12 | ||
| Tightening torque (Max) | ||||
| Nm | 0.5 | |||
| lbin | 4.5 | |||
| Fixing | Din rail | |||
| Weight | g | 210 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +60 | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Relative humidity | % | <80 | ||
| Max altitude | m | 2000 | ||
| Maximum Pollution degree | 2 | |||
| Overvoltage category | 3 | |||
| Protection degree | IP20 | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
