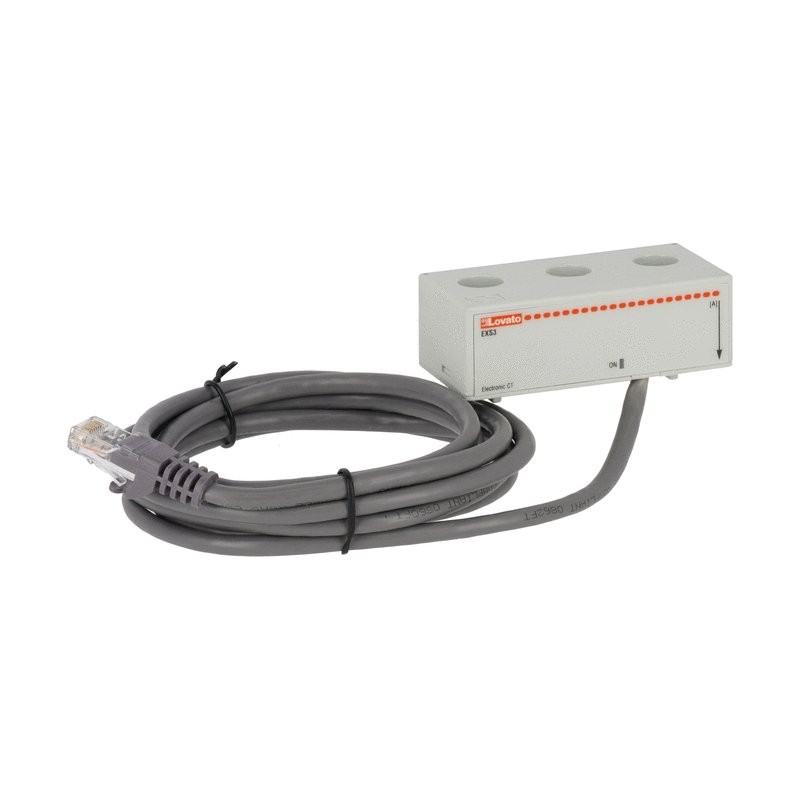

EXS3080 LOVATO CT 3-PH (27MM) RJ CONNECTION MAX 80A
EXS3080
LOVATO ELECTRIC
CT 3-PH (27MM) RJ CONNECTION MAX 80A
80A three-phase electronic current transformer with RJ45 cable, 2m long
Metering instruments and current transformers - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | EXS3080 |
| Weight [g] | 180 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 164X080X042 |
| Volume [cm³] | 551.04 |
| Bar code [EAN13] | 8013975299647 |
| HS Code | 90303100 |
Dimensions
Certifications:
CE
UKCA
EAC
CE
UKCA
EAC
Compliance:
IEC/EN/BS 61010-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-4
IEC/EN/BS 61010-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-4
| Product designation | Electronic current transformers for EASY BRANCH system | |||
| Product type designation | EXS3080 | |||
| Type | Three-phase | |||
| Current inputs | ||||
| Rated current (Ie) | A | 80 | ||
| Current | ||||
| IEC maximum (Imax) | A | 80 | ||
| IEC rated (Iref-lb) | A | 15 | ||
| IEC start (Ist) | mA | 30 | ||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 600 | ||
| Mechanical features | ||||
| Housing type | Polyamide | |||
| Terminals type | RJ45 | |||
| Weight | g | 180 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -30 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Relative humidity | % | <80 | ||
| Maximum Pollution degree | 2 | |||
| Overvoltage category | 3 | |||
| Protection degree | IP20 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC002475 - Current value transformer | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
