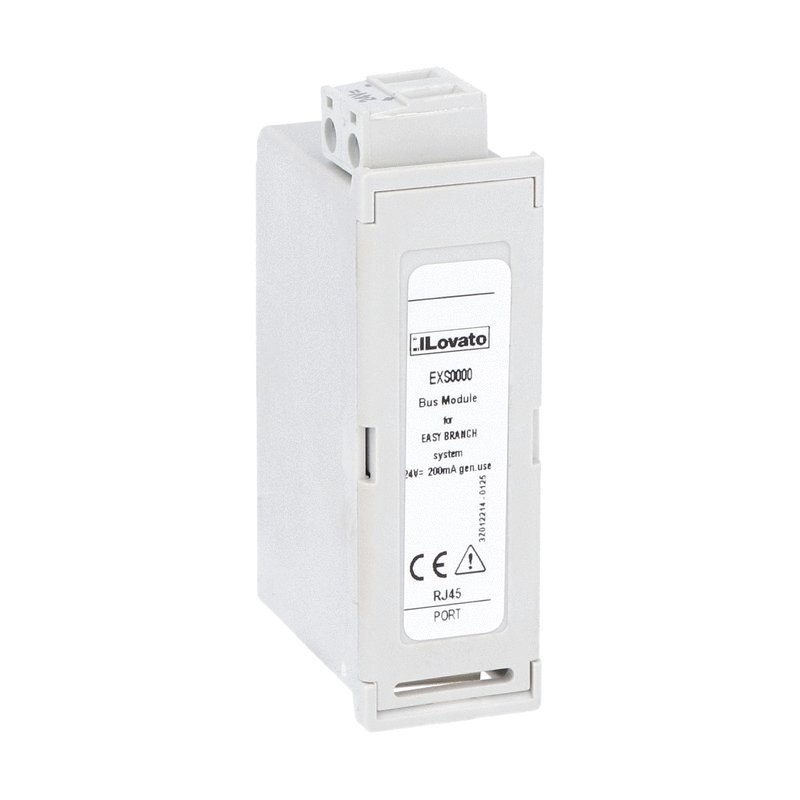

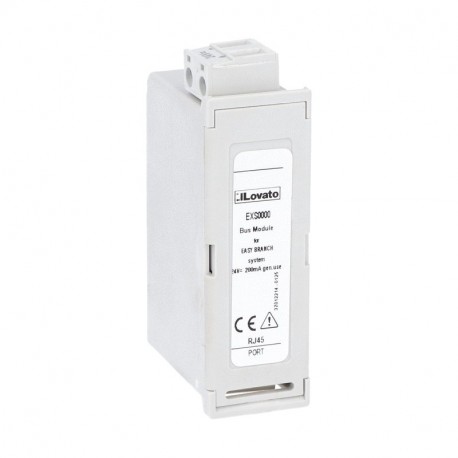

EXS0000 LOVATO EXP FOR BRANCH COMMUNICATION BUS
EXS0000
LOVATO ELECTRIC
EXP FOR BRANCH COMMUNICATION BUS
Bus module for EASY BRANCH power monitoring system
Metering instruments and current transformers - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | EXS0000 |
| Weight [g] | 40 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 084X027X107 |
| Volume [cm³] | 242.6 |
| Bar code [EAN13] | 8013975297476 |
| HS Code | 90303100 |
Dimensions
Wiring diagram
Certifications:
CE
UKCA
EAC
CE
UKCA
EAC
Compliance:
IEC/EN/BS 61010-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-4
IEC/EN/BS 61010-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-4
| Product designation | Bus module for EASY BRANCH | |||
| Product type designation | EXS0000 | |||
| Auxiliary supply Us | ||||
| Auxiliary rated supply voltage DC | VDC | 24 | ||
| Auxiliary operating voltage range | ||||
| DC | ||||
| min | VDC | 20.4 | ||
| Max | VDC | 27.6 | ||
| Power dissipation Max | W | 5.5 | ||
| Mechanical features | ||||
| Housing type | Polyamide | |||
| Terminals type | Screw | |||
| Conductor cross section | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 2.5 | ||
| min | AWG | 12 | ||
| Max | AWG | 24 | ||
| Tightening torque (Max) | ||||
| Nm | 0.5 | |||
| lbin | 4.5 | |||
| Weight | g | 90 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +60 | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Relative humidity | % | <80 | ||
| Maximum Pollution degree | 2 | |||
| Overvoltage category | 3 | |||
| Protection degree | IP20 | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
