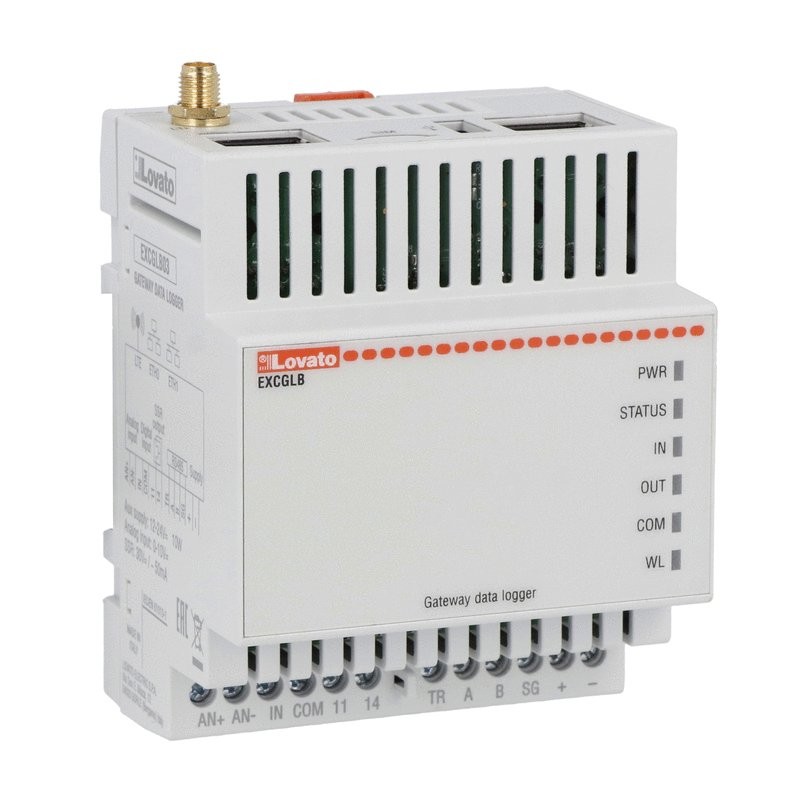

EXCGLB03 LOVATO GATEWAY-DATA LOGGER, 2X ETHERNET, 4G
EXCGLB03
LOVATO ELECTRIC
GATEWAY-DATA LOGGER, 2X ETHERNET, 4G
Gateway data logger, 1 RS485 port, 2 Ethernet port, 4G (LTE) connection
Installation bus systems > System interface/media gateway for bus system
Expansion modules and accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲EXCGLB03
Gateway data logger, 1 RS485 port, 2 Ethernet port, 4G (LTE) connection
Technical specifications
- Type of product:
- Gateway data logger
- Functions:
- Data logger
| Order code | EXCGLB03 |
|---|---|
| Weight [g] | 190 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 153X117X092 |
| Volume [cm³] | 1646.89 |
| Bar code [EAN13] | 8013975322031 |
| HS Code | 85364900 |
906.41 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP40 |
| Protocol (EF003880) | TCP/IP |
| Voltage type (EF000187) | DC |
| Mounting method (EF000003) | Other |
| Model (EF000010) | Other |
| Other bus systems (EF003811) | Other |
| Operating voltage (EF003983) | 12 V |
| Radio frequency bidirectional (EF009466) | Yes |
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| With LED indication (EF005950) | Yes |
| Web-Server (EF003915) | Yes |
| Visualization (EF003913) | No |
| Updateable (EF003903) | Yes |
| Provider dependent (EF003881) | No |
| IR interface (EF003861) | No |
| Radio interface (EF003849) | Yes |
| Demounting protection (EF003836) | No |
| Bus system LON (EF003831) | No |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | Yes |
| Bus system KNX (EF001499) | No |
| Max. number of devices per channel (EF014850) | 31 |
| Width in number of modular spacings (EF002950) | 4 |
| Power consumption (EF000346) | 10 W |
| Number of channels (EF000259) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
