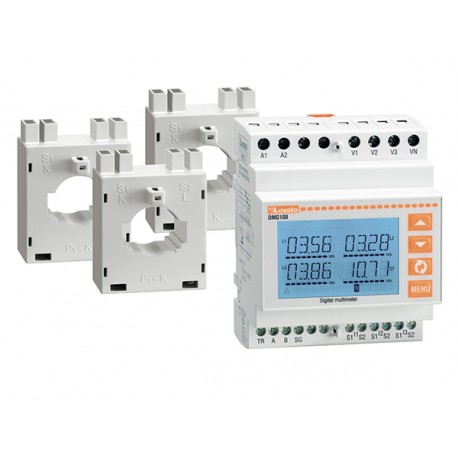

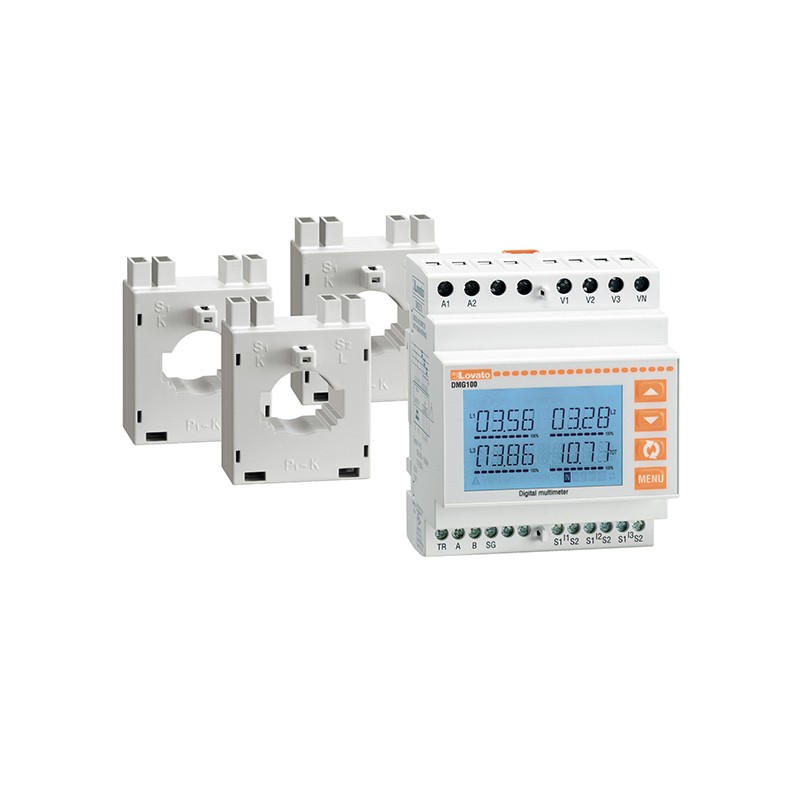

DMGKIT100100 LOVATO DIGITAL MULTIMETER DMG100 + 3 CT 100A
DMGKIT100100
LOVATO ELECTRIC
DIGITAL MULTIMETER DMG100 + 3 CT 100A
Composed of one DMG100 multimeter and N° 3 CTs 100/5A for Ø22mm/0.87” cable
COMPOSED OF ONE DMG100 MULTIMETER AND N° 3 CTs 100/5A FOR Ø22MM/0.87 CABLE
Devices for distribution board-/surface mounting > Multifunction measuring instrument
Metering instruments and current transformers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲DMGKIT100100
Composed of one DMG100 multimeter and N° 3 CTs 100/5A for Ø22mm/0.87” cable
Technical specifications
- Type of product:
- Multifunction digital metering instruments
- Type of installation:
- DIN rail mounting
- Primary current Ipn (/5) [A]:
- 100
- Type of current connection:
- CT /5A /1A
- Current harmonic analysis:
- 15th order
- Built-in communication port:
- No
- Expandable:
- No
| Order code | DMGKIT100100 |
|---|---|
| Weight [g] | 940 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 206X092X170 |
| Volume [cm³] | 3221.84 |
| Bar code [EAN13] | 8013975215197 |
| HS Code | 90303100 |
| Feature Name | Feature Value |
|---|---|
| Accuracy class reactive energy according to IEC 62053-23 (EF015239) | Other |
| Accuracy class active energy according to IEC 62053-22 (EF015238) | Other |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Display (EF000360) | LCD |
| Measuring range for frequency (EF009469) | 45 Hz |
| Supply voltage DC (EF007534) | 110 V |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Remote display (EF016138) | No |
| Web server with HTTPS transfer protocol (EF015395) | No |
| With Role Based Access Control (RBAC) (EF015394) | No |
| With logging of security events (security event log) (EF015393) | No |
| With firmware signature (EF015392) | No |
| With audit logging (audit log) (EF015391) | No |
| Supporting protocol for OPC UA PubSub (EF015390) | No |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Effective power measurement device (EF006561) | Yes |
| Voltmeter (EF006560) | Yes |
| Pulse counter (EF006559) | No |
| Frequency meter (EF006558) | Yes |
| With rotational speed meter (EF006557) | No |
| Reactive power meter (EF006556) | No |
| Ampere meter (EF006555) | Yes |
| Supporting protocol for other bus systems (EF003062) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Number of current measurement inputs (EF015388) | 3 |
| Number of voltage measurement inputs (EF015385) | 4 |
| Sampling frequency (EF015240) | 3200 Hz |
| Number of Ethernet connections (EF004661) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Number of analogue inputs (EF001994) | 0 |
| Number of digital outputs (EF001993) | 0 |
| Number of digital inputs (EF001992) | 0 |
| Depth (EF000049) | 58 mm |
| Height (EF000040) | 90 mm |
| Width (EF000008) | 72 mm |
