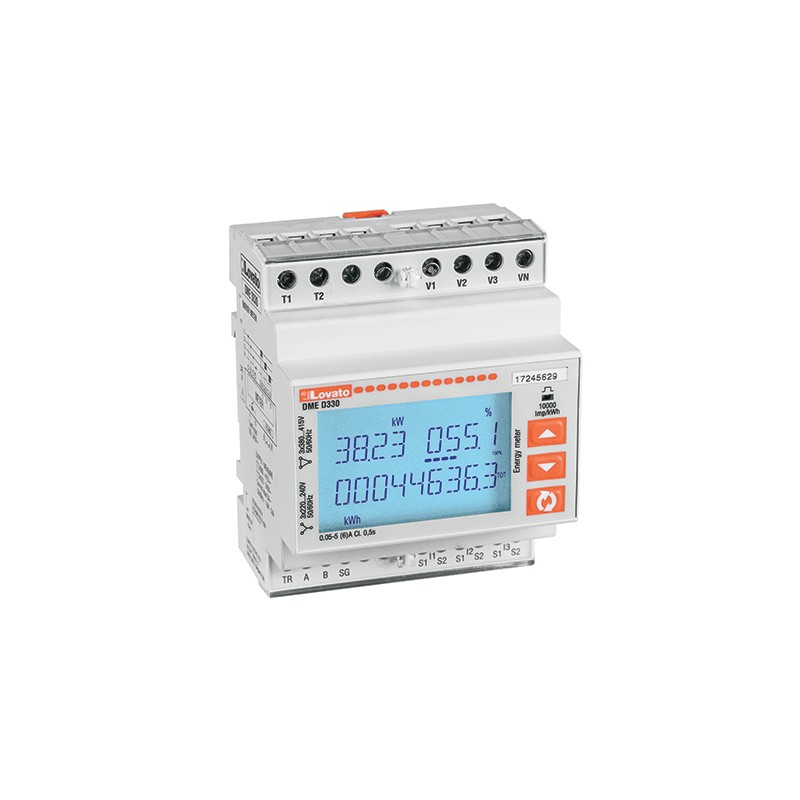

LOVATO ELECTRIC DMED330F DMED330F - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

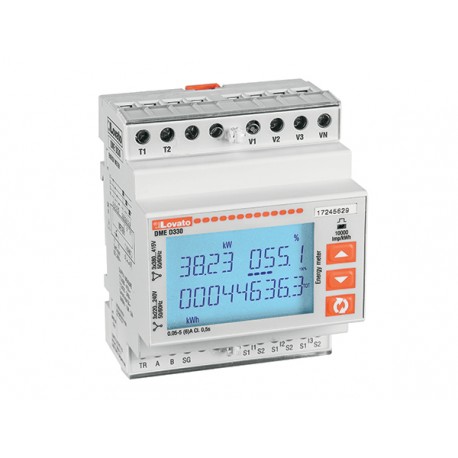

DMED330F LOVATO DMED330MID + UTF CERTIFICATE

Reference: DMED330F

Manufacturer: LOVATO ELECTRIC

Description:

DMED330MID + UTF CERTIFICATE
Energy meter, three-phase with neutral, non expandable, MID certified, UTF certified. Connection by CT /5A secondary, 4U, RS485 interface, multi-measurements

Categories:

  • Meters > Kilowatt-hour meter
  • LOVATO ELECTRIC > Metering instruments and current transformers - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

DMED330F

Energy meter, three-phase with neutral, non expandable, MID certified, UTF certified. Connection by CT /5A secondary, 4U, RS485 interface, multi-measurements

Technical specifications

Type of product:
Energy meters - Three-phase
Type of installation:
DIN rail mounting
Type of current connection:
CT /5A
IEC maximum current (Imax) [A]:
5
Type of energy measurement:
Imported/exported active energy and imported/exported reactive energy
Accuracy active energy measurement:
Class 0.5s (IEC/EN 62053-22)
Reactive energy:
Class 2 (IEC/EN 62053-23)
Current harmonic analysis:
No
Built-in communication port:
RS485
Expandable:
No
MID certified:
Imported active energy
Order codeDMED330F
Weight [g]346.8
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]173X124X194
Volume [cm³]4161.688
Bar code [EAN13]8013975232934
HS Code90283019

ETIM for DMED330F Meters (EC001506)

Feature nameNominal voltage (Un) L-L (EF008872)
Feature value400 V
Feature nameNominal voltage (Un) N-L (EF008871)
Feature value230 V
Feature namePulse rate (EF008840)
Feature value10000 Imp/kWh (kvarh)
Feature nameFrequency (EF000416)
Feature value45 Hz
Feature nameNominal current (In) (EF008873)
Feature value5 A
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameMax. current (Imax) (EF000877)
Feature value5 A
Feature nameDepth (EF000049)
Feature value58 mm
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameWidth (EF000008)
Feature value72 mm
Feature nameWith lock code (EF008846)
Feature valueYes
Feature nameEEC40 signature (EF008845)
Feature valueNo
Feature nameMeasurement type load profile (EF008844)
Feature valueNo
Feature nameCalibrated (EF008836)
Feature valueYes
Feature namePole type (EF008843)
Feature valueThree conductor/four conductor
Feature nameAccuracy class (EF008842)
Feature valueB
Feature namePulse output (EF008838)
Feature valueOptic
Feature nameApproval (EF008837)
Feature valueMeasuring Instruments Directive
Feature nameTariff control (EF008834)
Feature valueExternal
Feature nameTariff type (EF007550)
Feature valueTwo-tariff
Feature nameEnergy type (EF007135)
Feature valueEffective power and reactive power
Feature nameType of interface (EF006977)
Feature valueRS-485
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameType of meter (EF005441)
Feature valueElectronic
Feature nameType of indication (EF000306)
Feature valueDigital
Feature nameSuitable for (EF000073)
Feature valuePurchase
Feature nameModel (EF000010)
Feature valueMeasurement transformer
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
