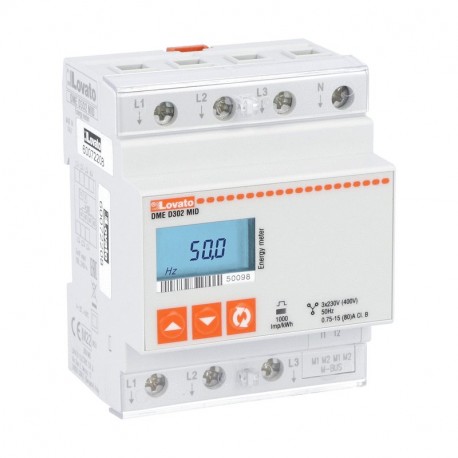

DMED302MID LOVATO ENERGY METER, THREE PHASE WITH NEUTRAL, NON EXPANDABLE, MID CERTIFIED, 80A DIRECT CONNECTI..
DMED302MID
LOVATO ELECTRIC
ENERGY METER, THREE PHASE WITH NEUTRAL, NON EXPANDABLE, MID CERTIFIED, 80A DIRECT CONNECTION, 4U, M-BUS INTERFACE, MULTI-MEASUREMENTS
MOD. (4U) 3-PH ENERGY METER, 80A , MBUS
Energy meter, three-phase with neutral, non expandable, MID certified, 80A direct connection, 4U, M-BUS interface, multi-measurements
Meters > Kilowatt-hour meter
Metering instruments and current transformers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲DMED302MID
Energy meter, three-phase with neutral, non expandable, MID certified, 80A direct connection, 4U, M-BUS interface, multi-measurements
Technical specifications
- Type of product:
- Energy meters - Three-phase
- Type of installation:
- DIN rail mounting
- Type of current connection:
- Direct
- IEC maximum current (Imax) [A]:
- 80
- Type of energy measurement:
- Imported/exported active energy and imported/exported reactive energy
- Accuracy active energy measurement:
- Class B (EN 50470-3)
- Reactive energy:
- Class 2 (IEC/EN 62053-23)
- Current harmonic analysis:
- No
- Built-in communication port:
- M-Bus
- Expandable:
- No
- MID certified:
- Imported active energy
| Order code | DMED302MID |
|---|---|
| Weight [g] | 377.9 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 153X117X092 |
| Volume [cm³] | 1646 |
| Bar code [EAN13] | 8013975230640 |
| HS Code | 90283019 |
292.62 £
| Feature Name | Feature Value |
|---|---|
| Pole type (EF008843) | Four conductor |
| Accuracy class (EF008842) | B |
| Pulse output (EF008838) | Optic |
| Approval (EF008837) | Measuring Instruments Directive |
| Tariff control (EF008834) | External |
| Tariff type (EF007550) | Two-tariff |
| Energy type (EF007135) | Effective power and reactive power |
| Type of interface (EF006977) | M-bus |
| Degree of protection (IP) (EF005474) | IP20 |
| Type of meter (EF005441) | Electronic |
| Type of indication (EF000306) | Digital |
| Suitable for (EF000073) | Purchase |
| Model (EF000010) | Direct measurement |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Nominal voltage (Un) L-L (EF008872) | 400 V |
| Nominal voltage (Un) N-L (EF008871) | 230 V |
| Pulse rate (EF008840) | 1000 Imp/kWh (kvarh) |
| Frequency (EF000416) | 45 Hz |
| With lock code (EF008846) | Yes |
| EEC40 signature (EF008845) | No |
| Measurement type load profile (EF008844) | No |
| Calibrated (EF008836) | Yes |
| Nominal current (In) (EF008873) | 15 A |
| Width in number of modular spacings (EF002950) | 4 |
| Max. current (Imax) (EF000877) | 80 A |
| Depth (EF000049) | 58 mm |
| Height (EF000040) | 90 mm |
| Width (EF000008) | 72 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| DMED302MID DMED302MID 24-Metering-instruments-and-current-transformers-24-January-2018_EN.pdf | 2 Mbytes |
|
