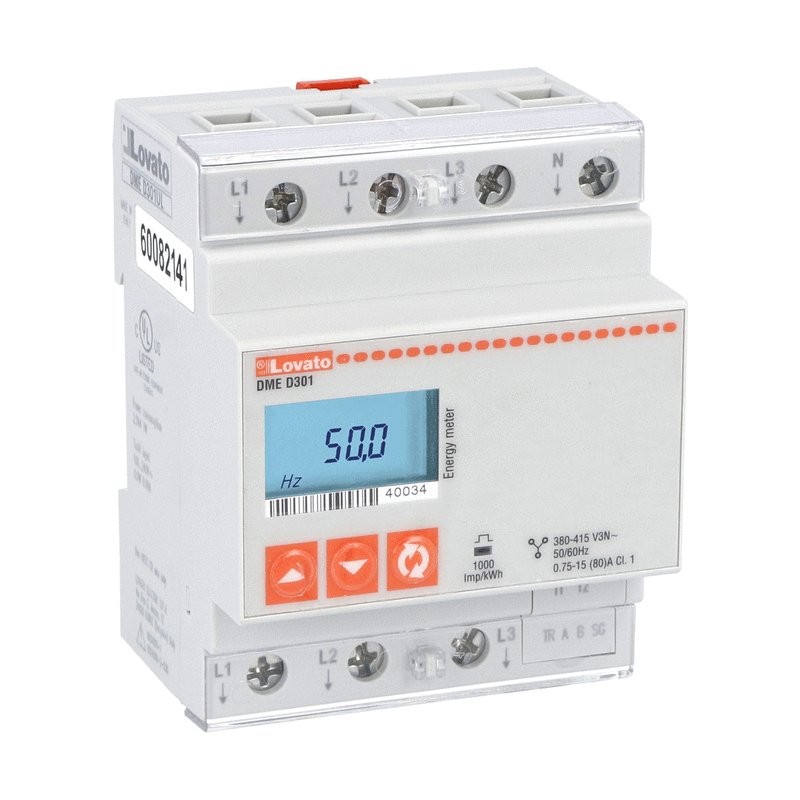

DMED301UL LOVATO 80A DIR. CONN. 3-PH ENERGY METER, RS485
DMED301UL
LOVATO ELECTRIC
80A DIR. CONN. 3-PH ENERGY METER, RS485
Energy meter, three-phase with neutral, non expandable, 80A direct connection, 4U, RS485 interface, multi-measurements. cULus version
Metering instruments and current transformers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲DMED301UL
Energy meter, three-phase with neutral, non expandable, 80A direct connection, 4U, RS485 interface, multi-measurements. cULus version
Technical specifications
- Type of product:
- Energy meters - Three-phase
- Type of installation:
- DIN rail mounting
- Type of current connection:
- Direct
- IEC maximum current (Imax) [A]:
- 80
- Type of energy measurement:
- Imported/exported active energy and imported/exported reactive energy
- Accuracy active energy measurement:
- Class 1 (IEC/EN 62053-21)
- Reactive energy:
- Class 2 (IEC/EN 62053-23)
- Current harmonic analysis:
- No
- Built-in communication port:
- RS485
- Expandable:
- No
- MID certified:
- No
| Order code | DMED301UL |
|---|---|
| Weight [g] | 381 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 153X117X092 |
| Volume [cm³] | 1646 |
| Bar code [EAN13] | 8013975268292 |
| HS Code | 90283019 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
