LOVATO ELECTRICMetering instruments and current transformers - LOVATO ELECTRICDMED301F LOVATO DMED301MID + UTF CERTIFICATE

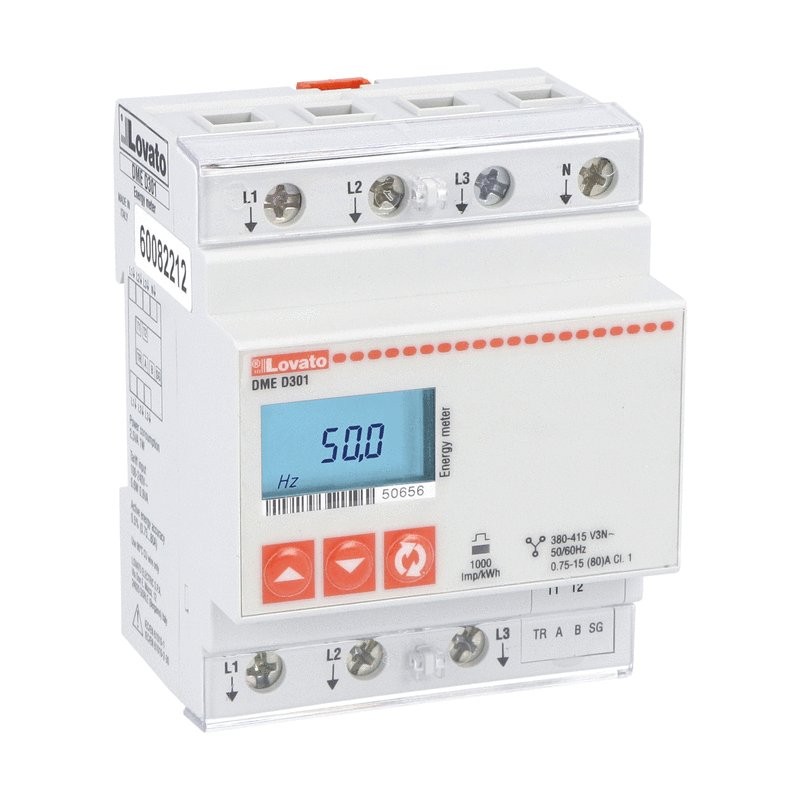

LOVATO ELECTRIC DMED301F DMED301F - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

DMED301F LOVATO DMED301MID + UTF CERTIFICATE

Reference: DMED301F

Manufacturer: LOVATO ELECTRIC

Description:

DMED301MID + UTF CERTIFICATE
Energy meter, three-phase with neutral, non expandable, MID certified, UTF certified. 80A direct connection, 4U, RS485 interface, multi-measurements

Categories:

  • Meters > Kilowatt-hour meter
  • LOVATO ELECTRIC > Metering instruments and current transformers - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

DMED301F

Energy meter, three-phase with neutral, non expandable, MID certified, UTF certified. 80A direct connection, 4U, RS485 interface, multi-measurements

Technical specifications

Type of product:
Energy meters - Three-phase
Type of installation:
DIN rail mounting
Type of current connection:
Direct
IEC maximum current (Imax) [A]:
80
Type of energy measurement:
Imported/exported active energy and imported/exported reactive energy
Accuracy active energy measurement:
Class 1 (IEC/EN 62053-21)
Reactive energy:
Class 2 (IEC/EN 62053-23)
Current harmonic analysis:
No
Built-in communication port:
RS485
Expandable:
No
MID certified:
Imported active energy
Order codeDMED301F
Weight [g]0
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]153X117X092
Volume [cm³]1646
Bar code [EAN13]8013975232903
HS Code90283019

ETIM for DMED301F Meters (EC001506)

Feature namePole type (EF008843)
Feature valueFour conductor
Feature nameAccuracy class (EF008842)
Feature valueB
Feature namePulse output (EF008838)
Feature valueOptic
Feature nameApproval (EF008837)
Feature valueMeasuring Instruments Directive
Feature nameTariff control (EF008834)
Feature valueExternal
Feature nameTariff type (EF007550)
Feature valueTwo-tariff
Feature nameEnergy type (EF007135)
Feature valueEffective power and reactive power
Feature nameType of interface (EF006977)
Feature valueRS-485
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameType of meter (EF005441)
Feature valueElectronic
Feature nameType of indication (EF000306)
Feature valueDigital
Feature nameSuitable for (EF000073)
Feature valuePurchase
Feature nameModel (EF000010)
Feature valueDirect measurement
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature nameNominal voltage (Un) L-L (EF008872)
Feature value400 V
Feature nameNominal voltage (Un) N-L (EF008871)
Feature value230 V
Feature namePulse rate (EF008840)
Feature value1000 Imp/kWh (kvarh)
Feature nameFrequency (EF000416)
Feature value45 Hz
Feature nameWith lock code (EF008846)
Feature valueYes
Feature nameEEC40 signature (EF008845)
Feature valueNo
Feature nameMeasurement type load profile (EF008844)
Feature valueNo
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameNominal current (In) (EF008873)
Feature value15 A
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameMax. current (Imax) (EF000877)
Feature value80 A
Feature nameDepth (EF000049)
Feature value58 mm
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameWidth (EF000008)
Feature value72 mm
