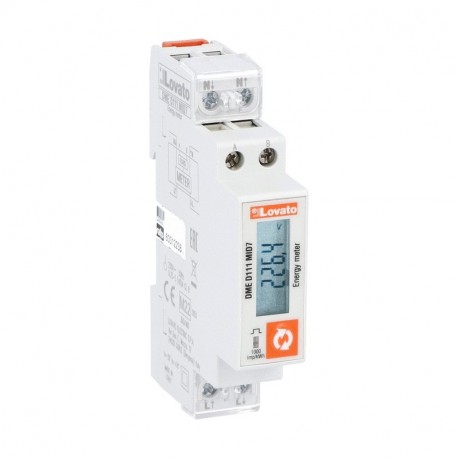

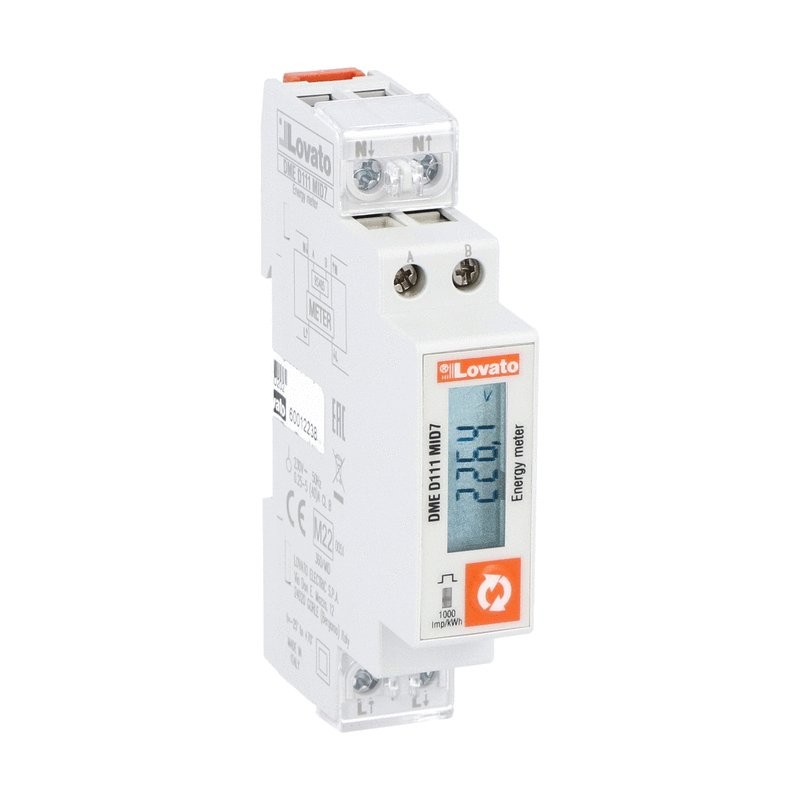

DMED111MID7 LOVATO 1PH 1U RS485 DIGITAL METER 40A MID 70C
DMED111MID7
LOVATO ELECTRIC
1PH 1U RS485 DIGITAL METER 40A MID 70C
Energy meter, single-phase, MID7 -25...+70°C certified, non expandable, 40A direct connection, RS485 interface, multi-measurements, 230VAC
Metering instruments and current transformers - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
More info
▲| Order code | DMED111MID7 |
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 067X022X094 |
| Volume [cm³] | 138.556 |
| Bar code [EAN13] | 8013975243183 |
| HS Code | 90283011 |
RCM
MID (modulo B + D)
EN50470-1
EN50470-3
TR 50579
| Product designation | Single-phase energy meters | |||
| Product type designation | DMED111MID7 | |||
| Type | Single-phase | |||
| DIN rail module number | 1 | |||
| Auxiliary supply Us | ||||
| Operational frequency | ||||
| min | Hz | 50 | ||
| Power consumption | ||||
| Max | VA | 7 | ||
| Power dissipation Max | W | 0.45 | ||
| Measuring voltage inputs | ||||
| Rated voltage (Ue) | ||||
| phase-neutral | VAC | 230 | ||
| Operating voltage range | ||||
| phase-neutral | VAC | 184…264 | ||
| Connection method | Direct | |||
| Current | ||||
| IEC maximum (Imax) | A | 40 | ||
| IEC minimum (Imin) | A | 0.25 | ||
| IEC rated (Iref-lb) | A | 5 | ||
| IEC start (Ist) | mA | 20 | ||
| Transition (Itr) | A | 0.5 | ||
| Accuracy | ||||
| Measurement conditions (T +23°C ±1°C / Rel. Humidity 45 ±15% R.H.) | ||||
| active energy | Class B (EN 50470-3) | |||
| reactive energy | Class 2 (IEC/EN 62053-23) | |||
| RS485 serial interface | ||||
| Baud rate | bps | Programmable 1200…38400 | ||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 250 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| Operating frequency withstand voltage | kV | 4 | ||
| Mechanical features | ||||
| Housing type | Polyamide | |||
| Terminals type | Fixed | |||
| Conductor cross section | ||||
| min | mm² | 1.5 | ||
| Max | mm² | 10 | ||
| min | AWG | 16 | ||
| Max | AWG | 6 | ||
| Tightening torque (Max) | ||||
| Nm | 1.5 | |||
| lbin | 14 | |||
| Fixing | DIN rail | |||
| Weight | g | 90 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Relative humidity | % | <80 | ||
| Maximum Pollution degree | 2 | |||
| Mechanical environment | Class M1 | |||
| Magnetic environment | Class E1 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC001506 - Kilowatt-hour meter | |||
