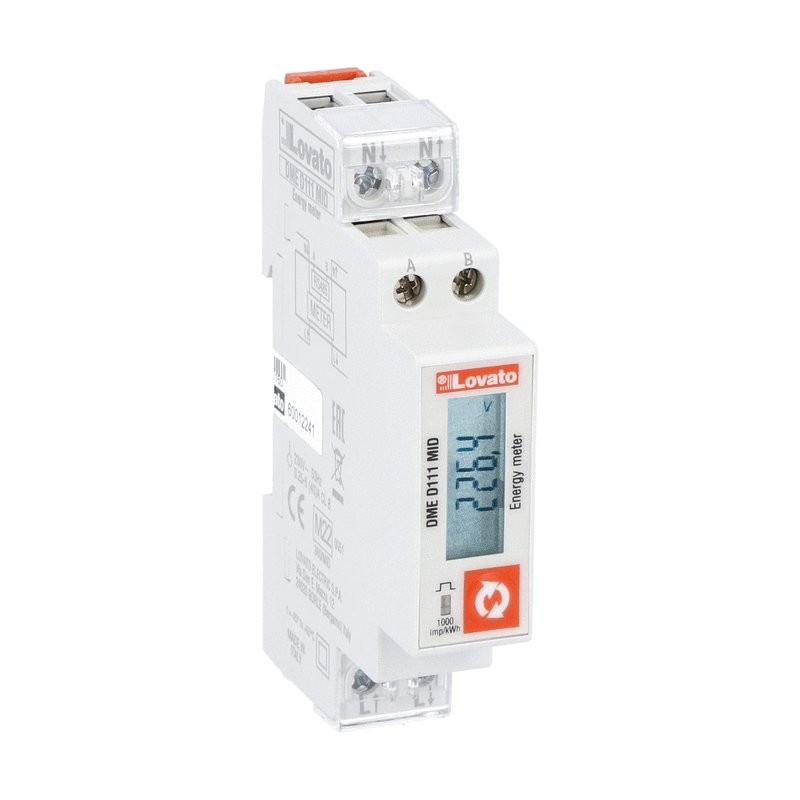

DMED111MID LOVATO 1PH 1U RS485 DIGITAL METER 40A MID
DMED111MID
LOVATO ELECTRIC
1PH 1U RS485 DIGITAL METER 40A MID
Energy meter, single-phase, MID certified, non expandable, 40A direct connection, RS485 interface, multi-measurements, 230VAC
Meters > Kilowatt-hour meter
Metering instruments and current transformers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲DMED111MID
Energy meter, single-phase, MID certified, non expandable, 40A direct connection, RS485 interface, multi-measurements, 230VAC
Technical specifications
- Type of product:
- Energy meters - Single-phase
- Type of installation:
- DIN rail mounting
- Type of current connection:
- Direct
- IEC maximum current (Imax) [A]:
- 40
- Type of energy measurement:
- Imported active energy and imported reactive energy
- Accuracy active energy measurement:
- Class B (EN 50470-3)
- Reactive energy:
- Class 2 (IEC/EN 62053-23)
- Current harmonic analysis:
- No
- Built-in communication port:
- RS485
- Expandable:
- No
- MID certified:
- Imported active energy
| Order code | DMED111MID |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 067X022X094 |
| Volume [cm³] | 138.556 |
| Bar code [EAN13] | 8013975243176 |
| HS Code | 90283011 |
104.39 £
| Feature Name | Feature Value |
|---|---|
| Pole type (EF008843) | Single phase |
| Accuracy class (EF008842) | B |
| Pulse output (EF008838) | Optic |
| Approval (EF008837) | Measuring Instruments Directive |
| Tariff control (EF008834) | External |
| Tariff type (EF007550) | One-tariff |
| Energy type (EF007135) | Effective power and reactive power |
| Type of interface (EF006977) | RS-485 |
| Degree of protection (IP) (EF005474) | IP20 |
| Type of meter (EF005441) | Electronic |
| Type of indication (EF000306) | Digital |
| Suitable for (EF000073) | Purchase |
| Model (EF000010) | Direct measurement |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Nominal voltage (Un) N-L (EF008871) | 230 V |
| Pulse rate (EF008840) | 1000 Imp/kWh (kvarh) |
| Frequency (EF000416) | 45 Hz |
| With lock code (EF008846) | Yes |
| EEC40 signature (EF008845) | No |
| Measurement type load profile (EF008844) | No |
| Calibrated (EF008836) | Yes |
| Nominal current (In) (EF008873) | 5 A |
| Width in number of modular spacings (EF002950) | 1 |
| Max. current (Imax) (EF000877) | 40 A |
| Depth (EF000049) | 58 mm |
| Height (EF000040) | 90 mm |
| Width (EF000008) | 18 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
