DM5TP2000FKIT LOVATO 3 DM5TP2000 + 3 UTF CERTIFICATES
DM5TP2000FKIT
LOVATO ELECTRIC
3 DM5TP2000 + 3 UTF CERTIFICATES

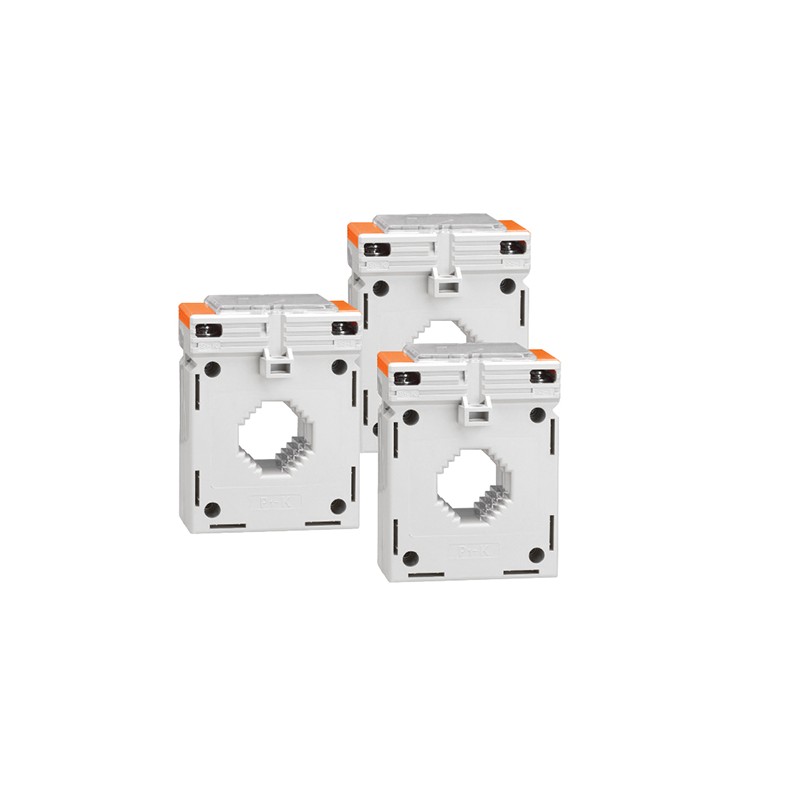

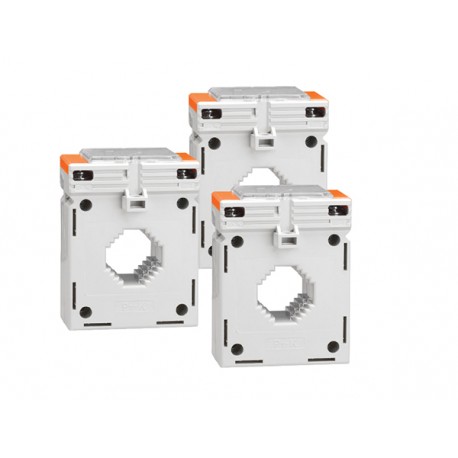

Kit of 3 DM5TP2000 current transformers
KIT OF 3 DM5TP2000 CURRENT TRANSFORMERS + 3 UTF CERTIFICATE
Low-voltage industrial components > Current transformer
Metering instruments and current transformers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲DM5TP2000FKIT
Kit of 3 DM5TP2000 current transformers
Technical specifications
- Type of product:
- Current transformers
- Type of CT:
- Solid-core
- Primary current Ipn (/5) [A]:
- 2000
| Order code | DM5TP2000FKIT |
|---|---|
| Weight [g] | 980.65 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 232X185X195 |
| Volume [cm³] | 8369.4 |
| Bar code [EAN13] | 8013975233085 |
| HS Code | 85043180 |
1076.22 £
| Feature Name | Feature Value |
|---|---|
| Secondary connection (EF021093) | Screw connection |
| Accuracy class (EF008842) | 0.5S |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Model (EF000010) | Other |
| Width opening (EF012758) | 45 mm |
| Height opening (EF012757) | 80 mm |
| Calibrated (EF008836) | Yes |
| With contact protection (EF008186) | No |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Rated secondary current (EF007471) | 5 A |
| Rated secondary apparent power (EF007470) | 10 VA |
| Rated primary current (EF007405) | 2000 A |
| Number of primary inputs (EF006947) | 1 |
| Opening diameter (EF005153) | 85 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
