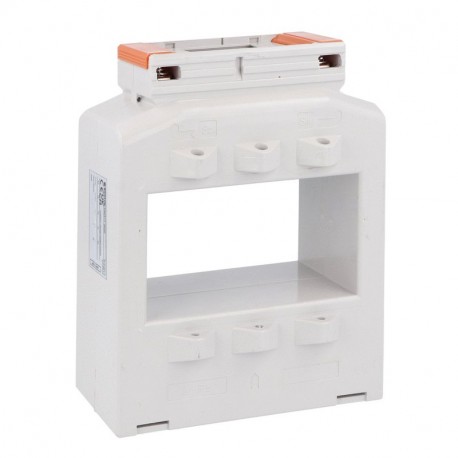

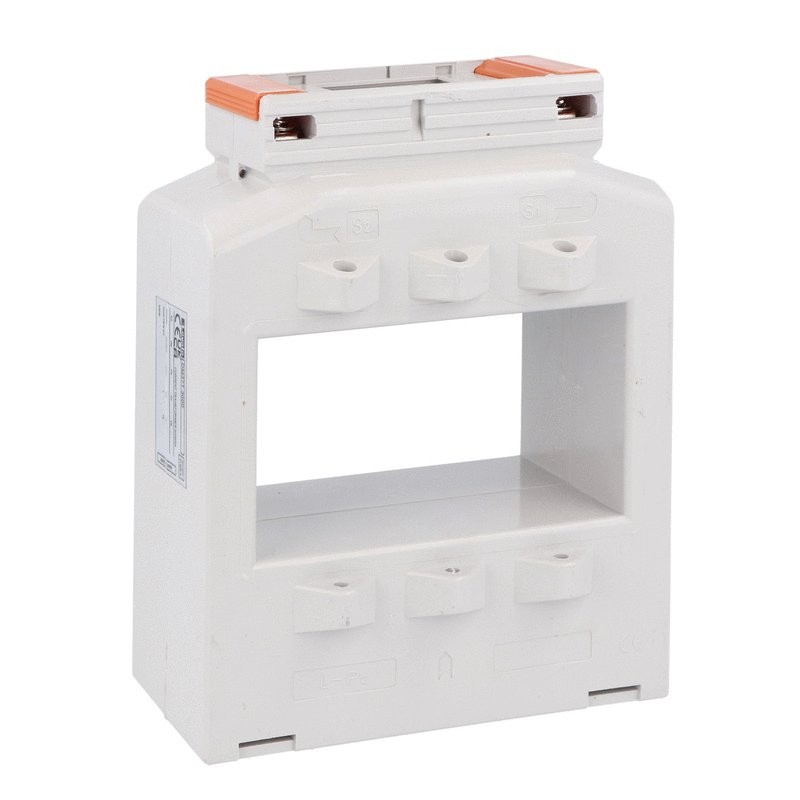

DM37T2000 LOVATO CURRENT TRANSFORMER 2000/5A 101X56MM BU
DM37T2000
LOVATO ELECTRIC
CURRENT TRANSFORMER 2000/5A 101X56MM BU
Current transformer, solid-core. For 101X56mm busbars, 2000A
Low-voltage industrial components > Current transformer
Metering instruments and current transformers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲DM37T2000
Current transformer, solid-core. For 101X56mm busbars, 2000A
Technical specifications
- Type of product:
- Current transformers
- Type of CT:
- Solid-core
- Primary current Ipn (/5) [A]:
- 2250
| Order code | DM37T2000 |
|---|---|
| Weight [g] | 989 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | |
| Volume [cm³] | 2142 |
| Bar code [EAN13] | 8013975300602 |
| HS Code | 85043180 |
68.57 £
| Feature Name | Feature Value |
|---|---|
| Secondary connection (EF021093) | Screw connection |
| Accuracy class (EF008842) | 0.5 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Model (EF000010) | Other |
| Width opening (EF012758) | 56 mm |
| Height opening (EF012757) | 101 mm |
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Rated secondary current (EF007471) | 5 A |
| Rated secondary apparent power (EF007470) | 10 VA |
| Rated primary current (EF007405) | 2000 A |
| Number of primary inputs (EF006947) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
