DM34T1500 LOVATO CURRENT TRANSFORMER 1500/5A FOR D44MM C
DM34T1500
LOVATO ELECTRIC
CURRENT TRANSFORMER 1500/5A FOR D44MM C

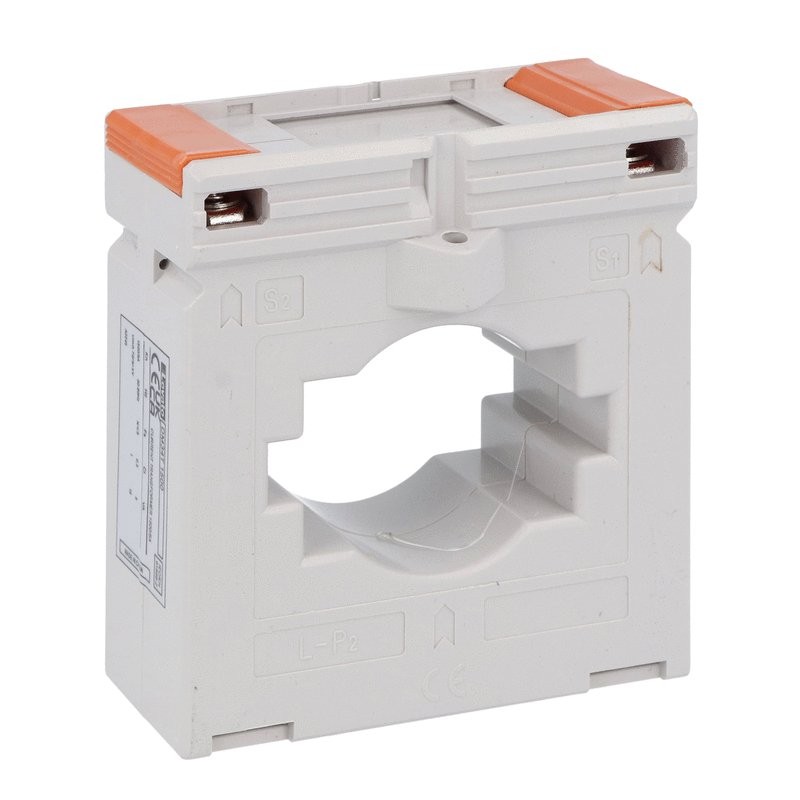

Current transformer, solid-core, for Ø44mm cable. For 69X10mm, 50X30mm busbars, 1500A
Low-voltage industrial components > Current transformer
Metering instruments and current transformers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲DM34T1500
Current transformer, solid-core, for Ø44mm cable. For 69X10mm, 50X30mm busbars, 1500A
Technical specifications
- Type of product:
- Current transformers
- Type of CT:
- Solid-core
- Primary current Ipn (/5) [A]:
- 1500
| Order code | DM34T1500 |
|---|---|
| Weight [g] | 47400 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | |
| Volume [cm³] | 784.875 |
| Bar code [EAN13] | 8013975300671 |
| HS Code | 85043180 |
43.52 £
| Feature Name | Feature Value |
|---|---|
| Secondary connection (EF021093) | Screw connection |
| Accuracy class (EF008842) | 0.5 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Model (EF000010) | Other |
| Width opening (EF012758) | 30 mm |
| Height opening (EF012757) | 50 mm |
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Rated secondary current (EF007471) | 5 A |
| Rated secondary apparent power (EF007470) | 5 VA |
| Rated primary current (EF007405) | 1500 A |
| Number of primary inputs (EF006947) | 1 |
| Opening diameter (EF005153) | 44 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
