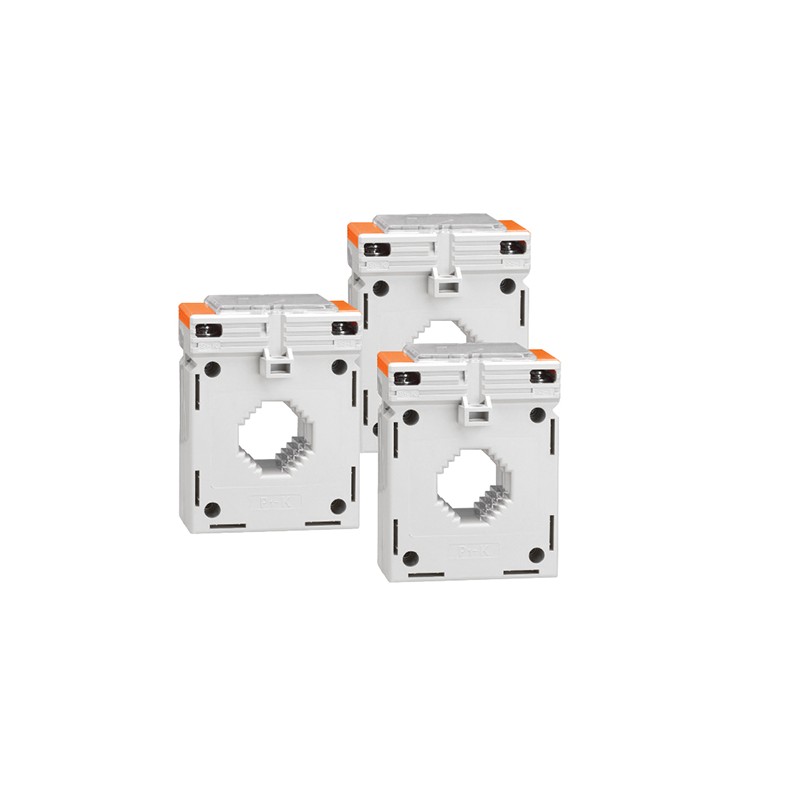

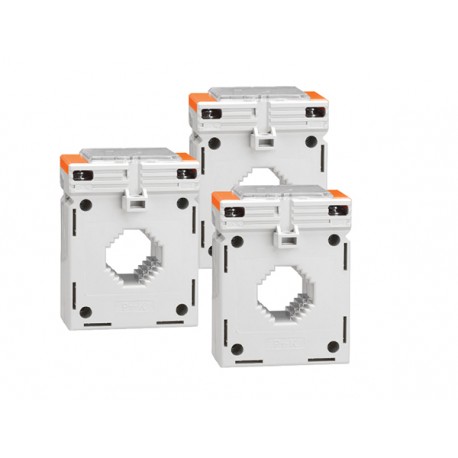

DM1TP0080FKIT LOVATO 3 DM1TP0080 + 3 UTF CERTIFICATES
DM1TP0080FKIT
LOVATO ELECTRIC
3 DM1TP0080 + 3 UTF CERTIFICATES
KIT OF 3 DM1TP0080 CURRENT TRANSFORMERS + 3 UTF CERTIFICATE
Low-voltage industrial components > Current transformer
Metering instruments and current transformers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | DM1TP0080FKIT |
| Weight [g] | 480.65 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 206X092X170 |
| Volume [cm³] | 3221.84 |
| Bar code [EAN13] | 8013975232958 |
| HS Code | 85043180 |
IEC/EN 61869-2
IEC/EN 61869-1
| Product designation | Current trasformers KIT - 3 DM1TP0080FKIT with UTF certificate | |||
| Product type designation | DM1TP0080FKIT | |||
| Auxiliary supply Us | ||||
| Operational frequency | ||||
| min | Hz | 50 | ||
| max | Hz | 60 | ||
| Current inputs | ||||
| Primary current Ipn (/5) | A | 80 | ||
| Secondary output current | A | 5 | ||
| Overload withstand Ipn | % | 120 | ||
| Burden | ||||
| cl. 0.5 | VA | 2.5 | ||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 720 | ||
| IEC rated short-time thermal current Ith | Ith for s | 40…60 | ||
| IEC rated dynamic current Idyn | Ith for s | 2.5 | ||
| Insulation dry type | Class E | |||
| Mechanical features | ||||
| Terminals type | Screw | |||
| Fixing | DIN rail or by Screw | |||
| Weight | g | 580 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +50 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +80 | ||
| Relative humidity | % | 90 | ||
| Protection degree | IP30 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC002048 - Current transformer | |||
| Feature Name | Feature Value |
|---|---|
| Secondary connection (EF021093) | Screw connection |
| Accuracy class (EF008842) | 0.5S |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Model (EF000010) | Other |
| Width opening (EF012758) | 28 mm |
| Height opening (EF012757) | 28 mm |
| Calibrated (EF008836) | Yes |
| With contact protection (EF008186) | No |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Rated secondary current (EF007471) | 5 A |
| Rated secondary apparent power (EF007470) | 2.5 VA |
| Rated primary current (EF007405) | 80 A |
| Number of primary inputs (EF006947) | 1 |
| Opening diameter (EF005153) | 28 mm |
