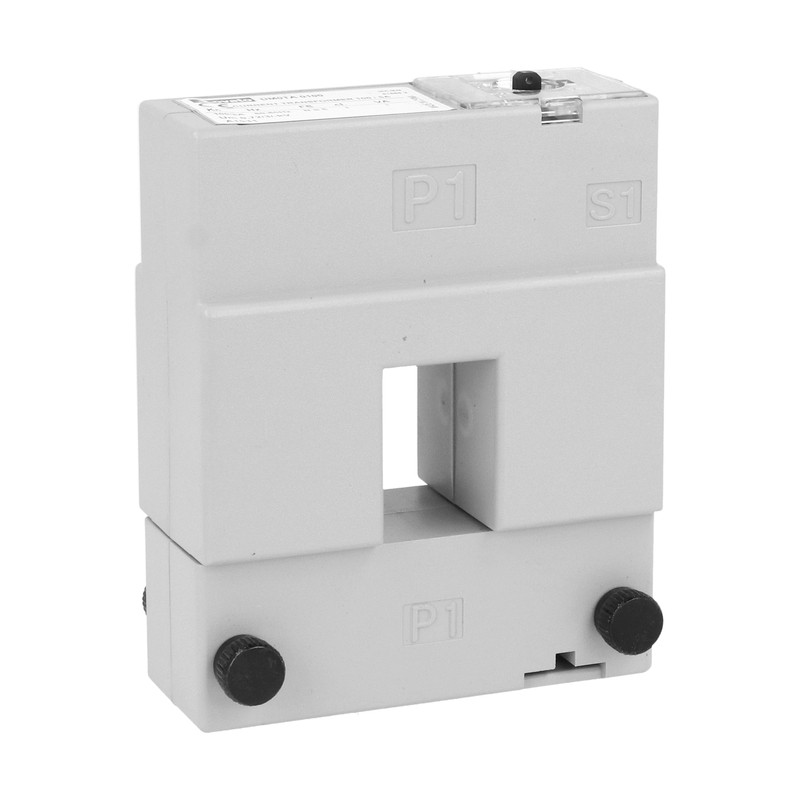

DM0TA0100 LOVATO SPLITCORE CT 100/5A FOR 20X30MM BUSBAR
DM0TA0100
LOVATO ELECTRIC
SPLITCORE CT 100/5A FOR 20X30MM BUSBAR
CURRENT TRANSFORMER, SPLIT-CORE, 32X21MM HOLE, 100A
Metering instruments and current transformers - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | DM0TA0100 |
| Weight [g] | 833 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 320X360X260 |
| Volume [cm³] | 1500 |
| Bar code [EAN13] | 8013975243299 |
| HS Code | 85389091 |
Dimensions
Certifications:
EAC
GOST
EAC
GOST
Compliance:
IEC/EN/BS 61869-2
IEC/EN/BS 61869-1
IEC/EN/BS 61869-2
IEC/EN/BS 61869-1
| Product designation | Current trasformers | |||
| Product type designation | DM0TA0100 | |||
| Auxiliary supply Us | ||||
| Operational frequency | ||||
| min | Hz | 50 | ||
| max | Hz | 60 | ||
| Current inputs | ||||
| Primary current Ipn (/5) | A | 100 | ||
| Secondary output current | A | 5 | ||
| Overload withstand Ipn | % | 120 | ||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 720 | ||
| IEC rated short-time thermal current Ith | Ith for s | 40…60 | ||
| IEC rated dynamic current Idyn | Ith for s | 2.5 | ||
| Insulation dry type | Class E | |||
| Mechanical features | ||||
| Terminals type | Screw | |||
| Fixing | Screw fixing | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +50 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +80 | ||
| Relative humidity | % | 90 | ||
| Protection degree | IP30 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC002048 - Current transformer | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
