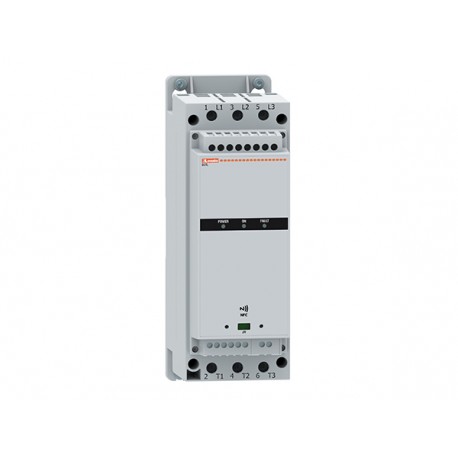

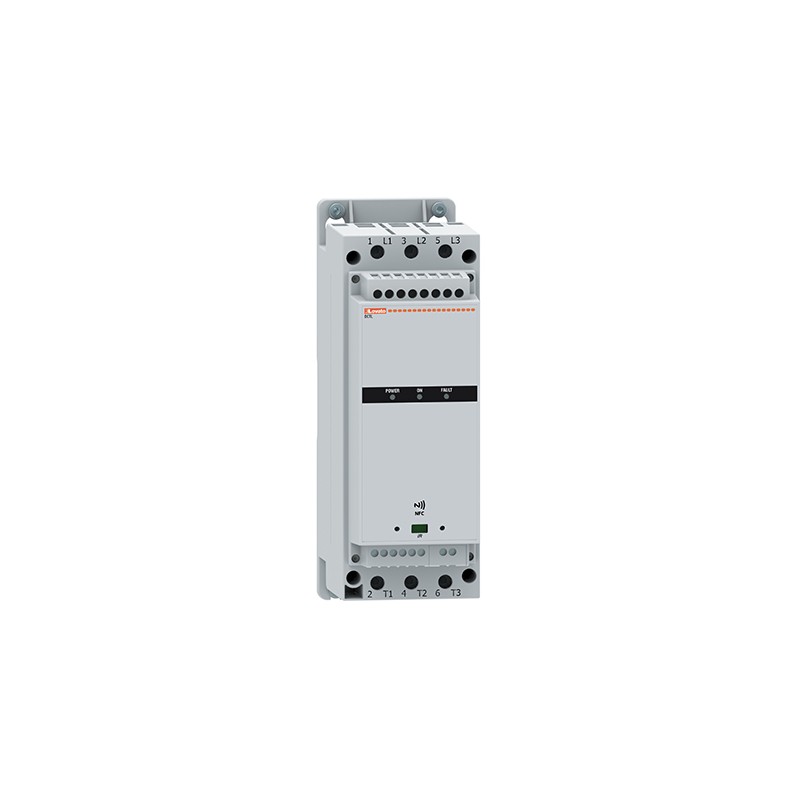

DCTLA4800180 LOVATO Module thyristor 22A 18Kvar 480V
DCTLA4800180
LOVATO ELECTRIC
Module thyristor 22A 18Kvar 480V
THYRISTOR MODULE 18KVAR 480VAC
Thyristor module, 18kvar at 480VAC, rated operating voltage 400...480VAC, with current control
Power factor controllers and thyristor modules - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | DCTLA4800180 |
| Weight [g] | 1940 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 232X107X200 |
| Volume [cm³] | 4964.8 |
| Bar code [EAN13] | 8013975237991 |
| HS Code | 85371098 |
Dimensions
Wiring diagram
Certifications:
cULus
cULus
Compliance:
IEC/EN 60947-4-3
IEC/EN 61000-6-2
IEC/EN 61000-6-4
IEC/EN 60947-4-3
IEC/EN 61000-6-2
IEC/EN 61000-6-4
| Product designation | Thyristor modules | |||
| Product type designation | DCTL | |||
| General characteristics | ||||
| Rated voltage | V | 400…480 | ||
| Operating voltage range | 340…528 | |||
| Rated frequency | Hz | 50/60 | ||
| Operating frequency range | Hz | 45…65 | ||
| Rated current (Ie) | A | 22 | ||
| Step power at | ||||
| 400VAC | kvar | 18 | ||
| 440VAC | kvar | 16.5 | ||
| 480VAC | kvar | 18 | ||
| Peak inverse voltage (PIV) | VAC | 2200 | ||
| Number of controlled phases | Nr. | 2 | ||
| Control circuit | 12-24VDC input or free-voltage input or via RS485 serial port (with optional card EXC1042 in combination with controller DCRG8F + EXP1012) | |||
| Auxiliary supply | ||||
| Rated auxiliary supply voltage Us | ||||
| AC | ||||
| min | VAC | 100 | ||
| Max | VAC | 240 | ||
| Auxiliary rated frequency | Hz | 50/60 | ||
| Power consumption Max | VA | 11.8 | ||
| Power dissipation Max | W | 4.6 | ||
| Control input | ||||
| Terminals | CONTROL +/- | |||
| Rated voltage | 12-24VDC | |||
| Operating range | 8…30VDC | |||
| Digital inputs | ||||
| Terminals | C-IN1 | |||
| Applied voltage at contact (internal) | 5VDC | |||
| Input current | mA | ≤10 | ||
| Low input signal | VDC | ≤0.8 | ||
| High input signal | VDC | ≥3.2 | ||
| Input signal delay | ms | ≥50 | ||
| NTC probe input | ||||
| Terminals | NTC-NTC | |||
| Sensor type | NTC (ordering code NTC01) | |||
| Measuring range | °C | -25…+85 | ||
| Maximum connection lenght | mt | 3 | ||
| Fan power supply | ||||
| Terminals | FAN +/- | |||
| Supply voltage (internal) | 5VDC (provided by DCTL) | |||
| Fan type | 1 built-in fan type EXP8004 | |||
| Relay outputs | ||||
| Number of relay output | Nr. | 1 | ||
| Contact arrangement | 1 C/O-SPDT | |||
| Rated current | NO contact: AC1 5A 250VAC / 5A 30VDCNC contact: AC1 3A 250VAC / 3A 30VDC | |||
| UL/CSA and IEC/EN 60947-5-1 designation | D300 | |||
| Maximum switching voltage | VAC | 250 | ||
| Electrical life (with rated load) | cycles | NO contact: 10x103 NC contact: 20x103 | ||
| Mechanical life | cycles | 107 | ||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 480 | ||
| Rated impulse withstand voltage Uimp | kV | 4 | ||
| Connections - power terminals | ||||
| Type of terminal | Fixed - double lock clamp | |||
| Conductor cross section | ||||
| min | mm² | 2 x 2.5 | ||
| Max | mm² | 2 x 35 | ||
| min | AWG | 2 x 18 | ||
| Max | AWG | 2 x 2 | ||
| Tightening torque (Max) | ||||
| Nm | 4-5 | |||
| lbin/lbft | 2.95-3.69 Ibft | |||
| Connections - relay output | ||||
| Type of terminal | Screw | |||
| Conductor cross section | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 4 | ||
| min | AWG | 26 | ||
| Max | AWG | 10 | ||
| Tightening torque (Max) | ||||
| Nm | 0.8 | |||
| lbin | 7 | |||
| Connections - fan and digital input | ||||
| Type of terminal | Screw | |||
| Conductor cross section | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 2.5 | ||
| min | AWG | 24 | ||
| Max | AWG | 12 | ||
| Tightening torque (Max) | ||||
| Nm | 0.44 | |||
| lbin | 4 | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +45°C without derating (up to 55°C with derating) | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Relative humidity | % | <80% | ||
| Maximum Pollution degree | 2 | |||
| Overvoltage category | III | |||
| Max altitude | m | 2000m wihtout derating | ||
| Climatic sequence | Z/ABDM (IEC/EN 60068-2-61) | |||
| Shock resistance | 15g (IEC/EN 60068-2-27) | |||
| Vibration resistance | 0.7g (IEC/EN 60068-2-6) | |||
| Housing | ||||
| Execution | Internal panel version | |||
| Material | Polycarbonate | |||
| Mounting | Screw fixing or DIN-rail (IEC/EN 60715) with optional accessory EXP8003 | |||
| Degree of protection | IP00 | |||
| Dimensions (W x H x D) | mm | 75 x 218 x 171.5 | ||
| Weight | g | 1740 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002055 - Solid state relay | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
