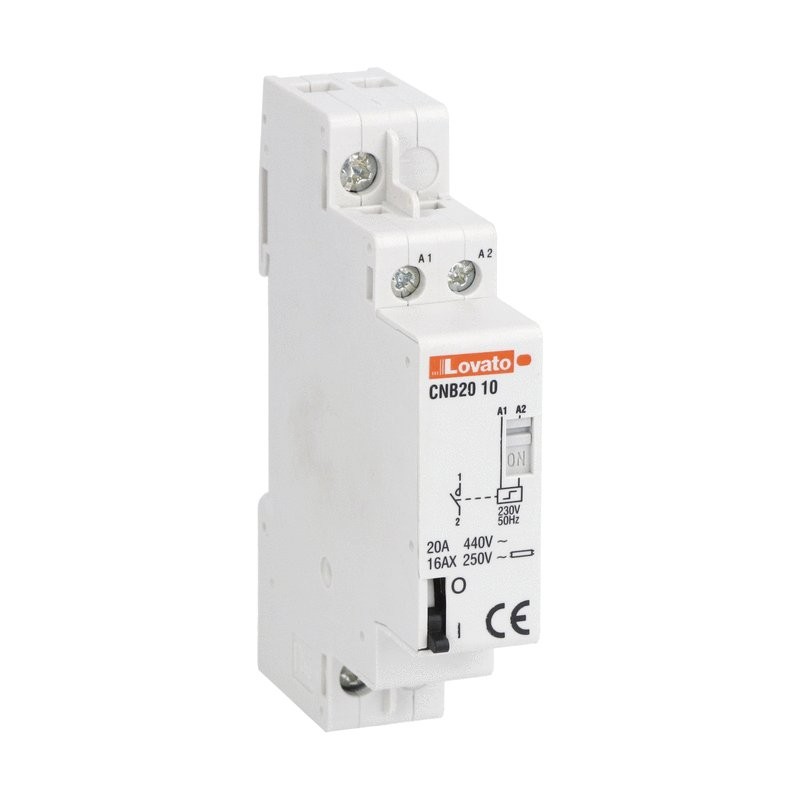

CNB2010230 LOVATO LATCHING RELAY 1M 20A AC1 1P 230V
CNB2010230
LOVATO ELECTRIC
LATCHING RELAY 1M 20A AC1 1P 230V
Latching relay, one or two-pole, 20A AC1, 230VAC (1NO)
LATCHING RELAY, ONE OR TWO-POLE, 20A AC1, 230VAC (1NO)
Low-voltage industrial components > Power contactor, AC switching
Modular contactors - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲CNB2010230
Latching relay, one or two-pole, 20A AC1, 230VAC (1NO)
Technical specifications
- Type of product:
- Latching relays
- Number of DIN modules:
- 1
- Rated supply voltage:
- 230VAC
- IEC Conventional free air thermal current Ith [A]:
- 20
- Type of contacts:
- 1NO
| Order code | CNB2010230 |
|---|---|
| Weight [g] | 117.6 |
| Qty. per package | 8 |
| Multiple qty. of packs per order | 8 |
| Package dimensions [mm] | 090X065X020 |
| Volume [cm³] | 117 |
| Bar code [EAN13] | 8013975242896 |
| HS Code | 85365080 |
58.06 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Rated control supply voltage AC 60 Hz (EF003979) | 230 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 230 V |
| Modular version (EF001126) | Yes |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
