View larger

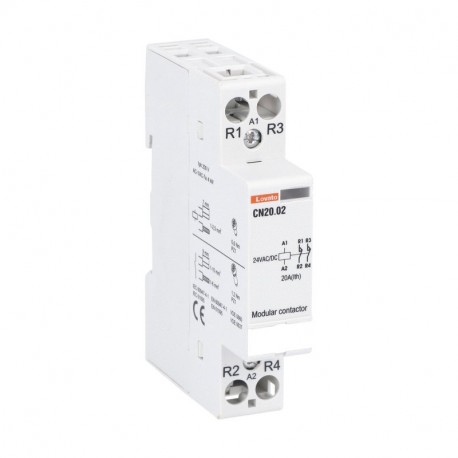

CN2002024 LOVATO Modular contactor Bipolar 20A 24V AC/DC 2NC
CN2002024
LOVATO ELECTRIC
Modular contactor Bipolar 20A 24V AC/DC 2NC
Modular contactor, one or two-pole, 20A AC1, 24VAC/DC (2NC)
Modular contactors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | CN2002024 |
| Weight [g] | 138 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 178X090X072 |
| Volume [cm³] | 115.344 |
| Bar code [EAN13] | 8013975147283 |
| HS Code | 85365080 |
Dimensions
Certifications:
EAC
EAC
Compliance:
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
IEC/EN 61095
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
IEC/EN 61095
| Product designation | MODULAR CONTACTOR | |||
| Product type designation | CN | |||
| Operating voltage type | AC/DC | |||
| Number of poles | 2 | |||
| Number of DIN modules | 1 | |||
| Electrical features | ||||
| IEC Conventional free air thermal current Ith | A | 20 | ||
| Operational current AC1 and AC-7a ≤400V | A | 20 | ||
| Operational current AC3 and AC-7b ≤400V | A | 9 | ||
| Rated insulation voltage Ui IEC/EN | V | 440 | ||
| Rated impulse withstand voltage Uimp | kV | 4 | ||
| Minimum switching capacity | ≥17V ≥50mA | |||
| Power dissipation per pole (average value) Ith | W | 1.7 | ||
| Control circuit | ||||
| Auxiliary rated supply voltage Us | 24VAC/DC | |||
| Auxiliary contacts | ||||
| NC | Nr. | 2 | ||
| Average coil consumption ≤20°C | ||||
| in-rush | W | 2.5 | ||
| holding | W | 2.5 | ||
| Operating voltage | ||||
| pick-up | ||||
| min | %Us | 85 | ||
| max | %Us | 110 | ||
| drop-out | ||||
| min | %Us | 20 | ||
| max | %Us | 75 | ||
| Operating times | ||||
| Average time | ||||
| Closing NO | ||||
| min | ms | 15 | ||
| Operations | ||||
| Mechanical life | cycles | 3000000 | ||
| Electrical life AC1 | cycles | 200000 | ||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -15 | ||
| max | °C | 55 | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | 80 | ||
| Max altitude | m | 2000 | ||
| Mechanical features | ||||
| Fixing | DIN rail 35mm | |||
| Tightening torque for coil terminal | ||||
| max | Nm | 0.6 | ||
| max | lbin | 0.6 | ||
| Tightening torque for terminals | ||||
| max | Nm | 1.2 | ||
| max | lbin | 0.9 | ||
| Conductor section | ||||
| Coil terminal | ||||
| min | mm² | 1 | ||
| max | mm² | 2.5 | ||
| Power terminal | ||||
| min | mm² | 1 | ||
| max | mm² | 10 | ||
| Terminals tool | PZ2 | |||
| Weight | g | 135 | ||
| Resistance & Protection | ||||
| Frontal IP degree | IP20 | |||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC001653 - Installation contactor for distribution board | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
