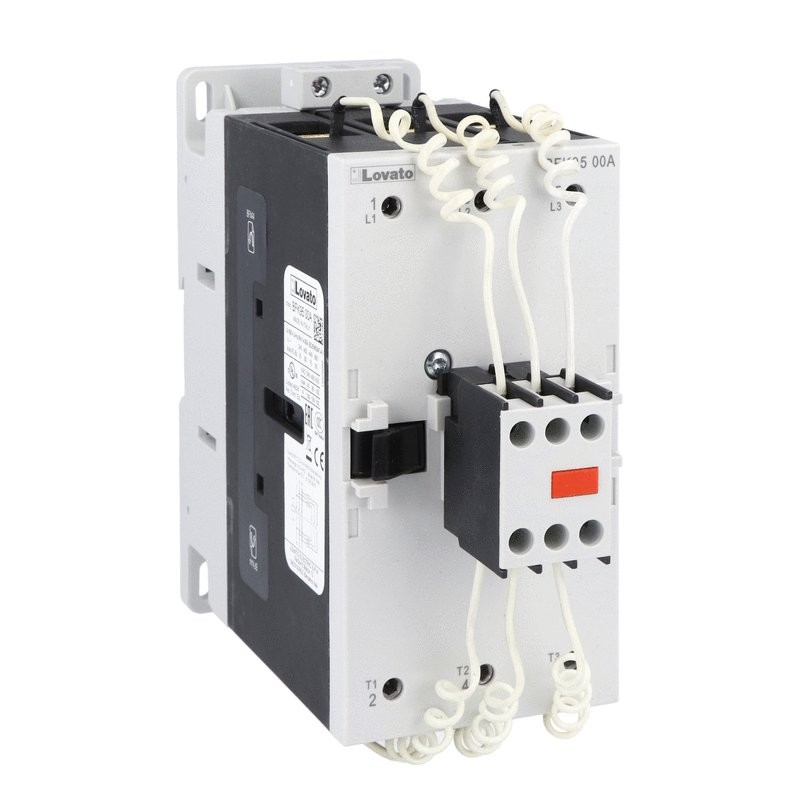

BFK9500A57560 LOVATO CONTACTOR FOR PFC 60KVAR 575VAC 60HZ
BFK9500A57560
LOVATO ELECTRIC
CONTACTOR FOR PFC 60KVAR 575VAC 60HZ
Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 60kvar, coil 575VAC 60Hz
Low-voltage industrial components > Capacitor contactor
Industrial Contactors and Accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲BFK9500A57560
Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 60kvar, coil 575VAC 60Hz
Technical specifications
- Type of product:
- Contactors for power factor correction with AC control circuit
- Number of poles:
- 3
- Type of coil:
- AC coil 60Hz
- Rated coil voltage [V]:
- 575
- IEC operational power 400V [kvar]:
- 60
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | BFK9500A57560 |
|---|---|
| Weight [g] | 2300 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 238X114X188 |
| Volume [cm³] | 5101 |
| Bar code [EAN13] | 8013975243626 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Rated control supply voltage AC 60 Hz (EF003979) | 575 V |
| Rated reactive power at 400 V, 50 Hz (EF007044) | 60 kvar |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
