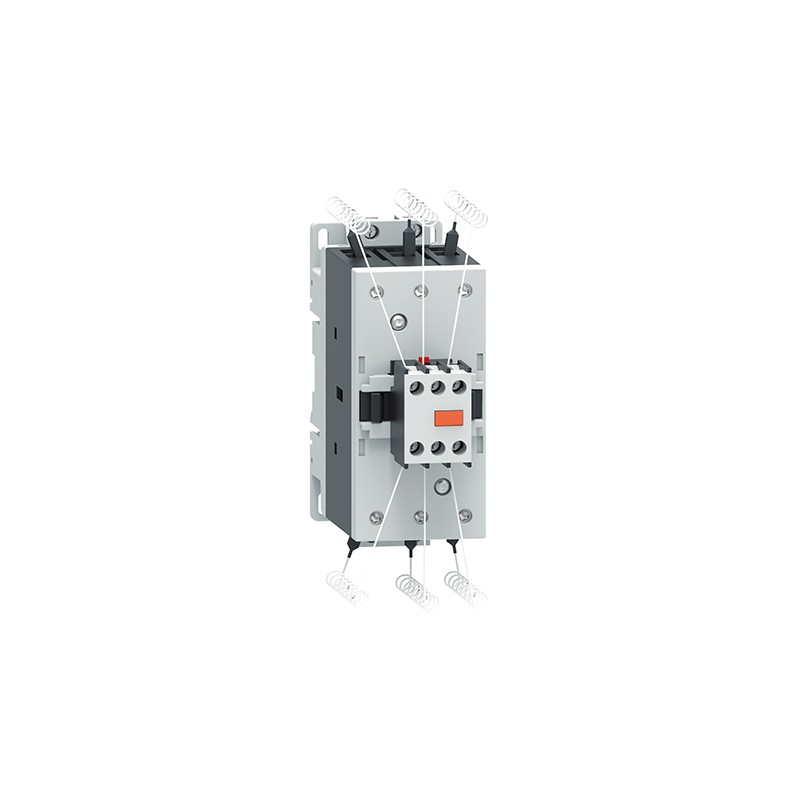

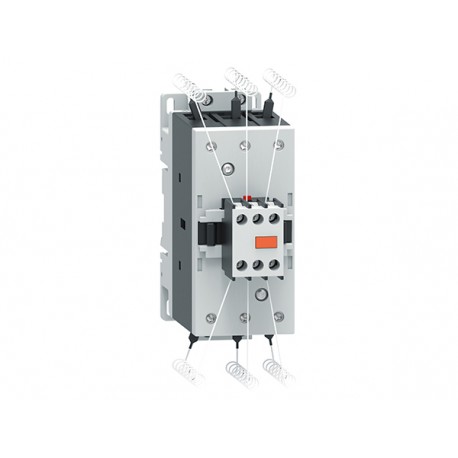

BFK6500A024 LOVATO CONTACTOR FOR POWER FACTOR CORRECTION WITH AC CONTROL CIRCUIT, BFK TYPE (INCLUDING LIMITI..
BFK6500A024
LOVATO ELECTRIC
CONTACTOR FOR POWER FACTOR CORRECTION WITH AC CONTROL CIRCUIT, BFK TYPE (INCLUDING LIMITING RESISTORS), MAXIMUM IEC OPERATIONAL POWER 400V = 45KVAR, 24VAC 50/60HZ
CONTACTOR FOR PFC 45KVAR 24VAC 50/60HZ
Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 45kvar, coil 24VAC 50/60Hz
Low-voltage industrial components > Capacitor contactor
Industrial Contactors and Accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲BFK6500A024
Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 45kvar, coil 24VAC 50/60Hz
Technical specifications
- Type of product:
- Contactors for power factor correction with AC control circuit
- Number of poles:
- 3
- Type of coil:
- AC coil 50/60Hz
- Rated coil voltage [V]:
- 24
- IEC operational power 400V [kvar]:
- 45
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | BFK6500A024 |
|---|---|
| Weight [g] | 1090 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 313X188X155 |
| Volume [cm³] | 1824 |
| Bar code [EAN13] | 8013975224533 |
| HS Code | 85365080 |
304.66 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated reactive power at 400 V, 50 Hz (EF007044) | 45 kvar |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| BFK6500A024 BFK6500A024 02-Contactors-02-January-2018_EN.pdf | 6 Mbytes |
|
