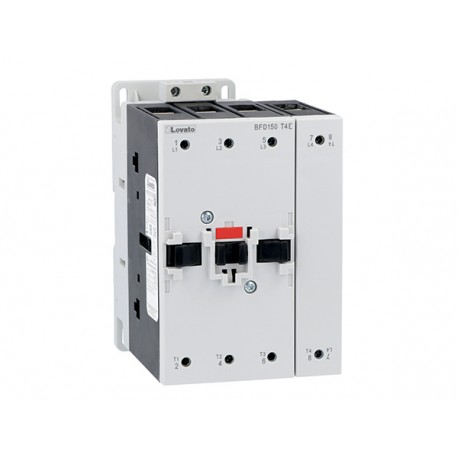

BFD150T4E024 LOVATO Contactor Tetrapolar 165A DC1 600V Coil 20...48V AC/DC
BFD150T4E024
LOVATO ELECTRIC
Contactor Tetrapolar 165A DC1 600V Coil 20...48V AC/DC
4P CONTACT.100A/1000V DC1 20-48VAC/DC
Four-pole contactor, 100A/1000V DC1, AC/DC coil, 20-48VAC/DC
FOUR-POLE CONTACTOR, 100A/1000V DC1, AC/DC COIL, 20-48VAC/DC
Low-voltage industrial components > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲BFD150T4E024
Four-pole contactor, 100A/1000V DC1, AC/DC coil, 20-48VAC/DC
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 4
- Type of coil:
- AC/DC coil
- Rated coil voltage [V]:
- 20...48
- For photovoltaic application:
- Yes
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | BFD150T4E024 |
|---|---|
| Weight [g] | 2860 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 173X082X145 |
| Volume [cm³] | 2056 |
| Bar code [EAN13] | 8013975241790 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Rated control supply voltage DC (EF003980) | 20 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 20 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 20 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 160 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 4 |
