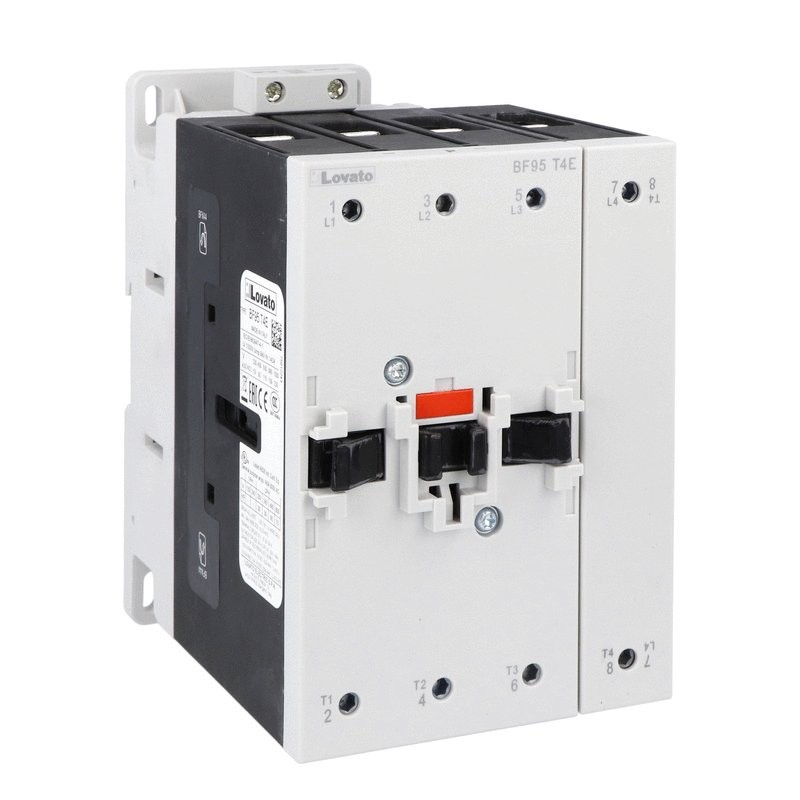

Contactor Tetrapolar 140A AC1 Coil 60...110V AC/DC
4P CONTACTOR 140A AC1 60-110VAC/DC
Four-pole contactor, IEC operating current Ith (AC1) = 140A, AC/DC coil, 110VAC/DC
Industrial Contactors and Accessories - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Order code | BF95T4E110 |
Weight [g] | |
Qty. per package | 1 |
Multiple qty. of packs per order | 1 |
Package dimensions [mm] | 173X082X145 |
Volume [cm³] | 2056 |
Bar code [EAN13] | 8013975241776 |
HS Code | 85365080 |
Product designation | Power contactor | |||
Product type designation | BF95 | |||
Contact characteristics | ||||
Number of poles | Nr. | 4 | ||
Rated insulation voltage Ui IEC/EN | V | 1000 | ||
Rated impulse withstand voltage Uimp | kV | 8 | ||
Operational frequency | ||||
min | Hz | 25 | ||
max | Hz | 400 | ||
IEC Conventional free air thermal current Ith | A | 140 | ||
Operational current Ie | ||||
AC-1 (≤40°C) | A | 140 | ||
AC-1 (≤55°C) | A | 115 | ||
AC-1 (≤70°C) | A | 100 | ||
AC-3 (≤440V ≤55°C) | A | 95 | ||
AC-4 (400V) | A | 45 | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series | ||||
≤24V | A | 140 | ||
48V | A | 140 | ||
75V | A | 100 | ||
110V | A | 10 | ||
220V | A | – | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series | ||||
≤24V | A | 140 | ||
48V | A | 140 | ||
75V | A | 140 | ||
110V | A | 110 | ||
220V | A | 12 | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series | ||||
≤24V | A | 140 | ||
48V | A | 140 | ||
75V | A | 155 | ||
110V | A | 120 | ||
220V | A | 125 | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series | ||||
≤24V | A | 140 | ||
48V | A | 140 | ||
75V | A | 155 | ||
110V | A | 140 | ||
220V | A | 140 | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 1 poles in series | ||||
≤24V | A | 140 | ||
48V | A | 44 | ||
75V | A | 36 | ||
110V | A | 6 | ||
220V | A | – | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 2 poles in series | ||||
≤24V | A | 140 | ||
48V | A | 63 | ||
75V | A | 60 | ||
110V | A | 55 | ||
220V | A | 7 | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 3 poles in series | ||||
≤24V | A | 140 | ||
48V | A | 115 | ||
75V | A | 90 | ||
110V | A | 85 | ||
220V | A | 76 | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 4 poles in series | ||||
≤24V | A | 140 | ||
48V | A | 110 | ||
75V | A | 110 | ||
110V | A | 105 | ||
220V | A | 95 | ||
Short-time allowable current for 10s (IEC/EN60947-1) | A | 760 | ||
Protection fuse | ||||
gG (IEC) | A | 160 | ||
aM (IEC) | A | 100 | ||
Making capacity (RMS value) | A | 1200 | ||
Breaking capacity at voltage | ||||
440V | A | 1100 | ||
500V | A | 775 | ||
690V | A | 745 | ||
Resistance per pole (average value) | mΩ | 0.45 | ||
Power dissipation per pole (average value) | ||||
Ith | W | 8.8 | ||
AC3 | W | 4.1 | ||
Tightening torque for terminals | ||||
min | Nm | 6 | ||
max | Nm | 7 | ||
min | Ibin | 4.4 | ||
max | Ibin | 5.2 | ||
Tightening torque for coil terminal | ||||
min | Nm | 0.8 | ||
max | Nm | 1 | ||
min | Ibin | 0.59 | ||
max | Ibin | 0.74 | ||
Conductor section | ||||
Flexible w/o lug conductor section | ||||
min | mm² | 1.5 | ||
max | mm² | 70 | ||
Flexible c/w lug conductor section | ||||
min | mm² | 1.5 | ||
max | mm² | 70 | ||
Power terminal protection according to IEC/EN 60529 | IP20 front | |||
Mechanical features | ||||
Operating position | ||||
normal | Vertical plan | |||
allowable | ±30° | |||
Fixing | Screw / DIN rail 35mm | |||
Weight | g | 2460 | ||
Auxiliary contact characteristics | ||||
Thermal current Ith | A | 140 | ||
Operations | ||||
Mechanical life | cycles | 15000000 | ||
Electrical life | cycles | 1400000 | ||
AC coil operating | ||||
Rated AC voltage at 50/60Hz, 60Hz | ||||
min | V | 60 | ||
max | V | 110 | ||
Rated AC voltage at 50/60Hz | V | 110 | ||
AC operating voltage | ||||
of 50/60Hz coil powered at 50Hz | ||||
pick-up | ||||
min | %Us | 80 Us min | ||
max | %Us | 110 Us max | ||
drop-out | ||||
max | %Us | ≤70 Us min | ||
of 50/60Hz coil powered at 60Hz | ||||
pick-up | ||||
min | %Us | 80 Us min | ||
max | %Us | 110 Us max | ||
drop-out | ||||
max | %Us | ≤70 Us min | ||
AC average coil consumption at 20°C | ||||
of 50/60Hz coil powered at 50Hz | ||||
in-rush | VA | 70…175 | ||
holding | VA | 1.7…3.5 | ||
of 50/60Hz coil powered at 60Hz | ||||
in-rush | VA | 70…175 | ||
holding | VA | 1.7…3.5 | ||
of 60Hz coil powered at 60Hz | ||||
in-rush | VA | 70…175 | ||
holding | VA | 1.7…3.5 | ||
Dissipation at holding ≤20°C 50Hz | W | 1.3…1,5 | ||
DC coil operating | ||||
DC rated control voltage | ||||
min | V | 60 | ||
max | V | 110 | ||
DC rated control voltage | V | 110 | ||
DC operating voltage | ||||
pick-up | ||||
min | %Us | 80 Us min | ||
max | %Us | 110 Us max | ||
drop-out | ||||
max | %Us | ≤70 Us min | ||
Average coil consumption ≤20°C | ||||
in-rush | W | 70…80 | ||
holding | W | 1.3…1.5 | ||
Max cycles frequency | ||||
Mechanical operation | cycles/h | 1500 | ||
Operating times | ||||
Average time for Us control | ||||
in AC | ||||
Closing NO | ||||
min | ms | 45 | ||
max | ms | 90 | ||
Opening NO | ||||
min | ms | 24 | ||
max | ms | 60 | ||
in DC | ||||
Closing NO | ||||
min | ms | 45 | ||
max | ms | 85 | ||
Opening NO | ||||
min | ms | 24 | ||
max | ms | 60 | ||
UL technical data | ||||
General USE | ||||
Contactor | ||||
AC current | A | 150 | ||
Short-circuit protection fuse, 600V | ||||
High fault | ||||
Short circuit current | kA | 100 | ||
Fuse rating | A | 200 | ||
Fuse class | J | |||
Standard fault | ||||
Short circuit current | kA | 10 | ||
Fuse rating | A | 250 | ||
Fuse class | RK5 | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -50 | ||
max | °C | 70 | ||
Storage temperature | ||||
min | °C | -60 | ||
max | °C | +80 | ||
Max altitude | m | 3000 | ||
ETIM classification | ||||
ETIM 8.0 | EC000066 - Power contactor, AC switching |
