LOVATO ELECTRICIndustrial Contactors and Accessories - LOVATO ELECTRICBF9500A400 LOVATO Contactor three-pole 95A AC3-Coil 400V AC

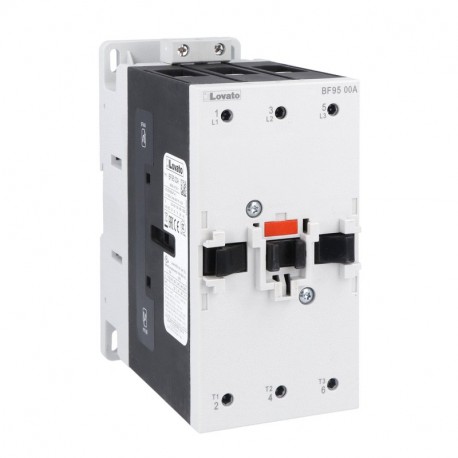

LOVATO ELECTRIC BF9500A400 BF9500A400 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BF9500A400 LOVATO Contactor three-pole 95A AC3-Coil 400V AC

Reference: BF9500A400

Manufacturer: LOVATO ELECTRIC

Description:

Contactor three-pole 95A AC3-Coil 400V AC
3P CONTACTOR 95A AC3 400VAC 50/60HZ
Three-pole contactor, IEC operating current Ie (AC3) = 95A, AC coil 50/60Hz, 400VAC
THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 95A, AC COIL 50/60HZ, 400VAC

Categories:

  • Low-voltage industrial components > Power contactor, AC switching
  • LOVATO ELECTRIC > Industrial Contactors and Accessories - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 269,16 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

BF9500A400

Three-pole contactor, IEC operating current Ie (AC3) = 95A, AC coil 50/60Hz, 400VAC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC coil 50/60Hz
Rated coil voltage [V]:
400
IEC operating current Ith (AC1) [A]:
140
IEC operating current and power Ie (AC3) 400V [A/Kw]:
95A / 55Kw
UL/CSA horsepower ratings 480V [HP]:
60
Type of mounting:
Screw / DIN rail 35mm
Order codeBF9500A400
Weight [g]2178
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]173X082X145
Volume [cm³]2056
Bar code [EAN13]8013975238738
HS Code85365080

352.15 £

ETIM for BF9500A400 Low-voltage industrial controls and switchgear (EC000066)

Feature nameVoltage type for actuating (EF008242)
Feature valueAC
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueFrame clamp
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value400 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value400 V
Feature nameModular version (EF001126)
Feature valueNo
Feature nameRated operation current Ie at AC-4, 400 V (EF008495)
Feature value45 A
Feature nameRated operation current Ie at AC-1, 400 V (EF001393)
Feature value140 A
Feature nameRated operation current Ie at AC-3, 400 V (EF001392)
Feature value95 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of normally closed contacts as main contact (EF001375)
Feature value0
Feature nameNumber of normally open contacts as main contact (EF001374)
Feature value3
Feature nameRated operation power at AC-3, 400 V (EF001364)
Feature value55 kW

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LOVATO EN
99 Mbytes
