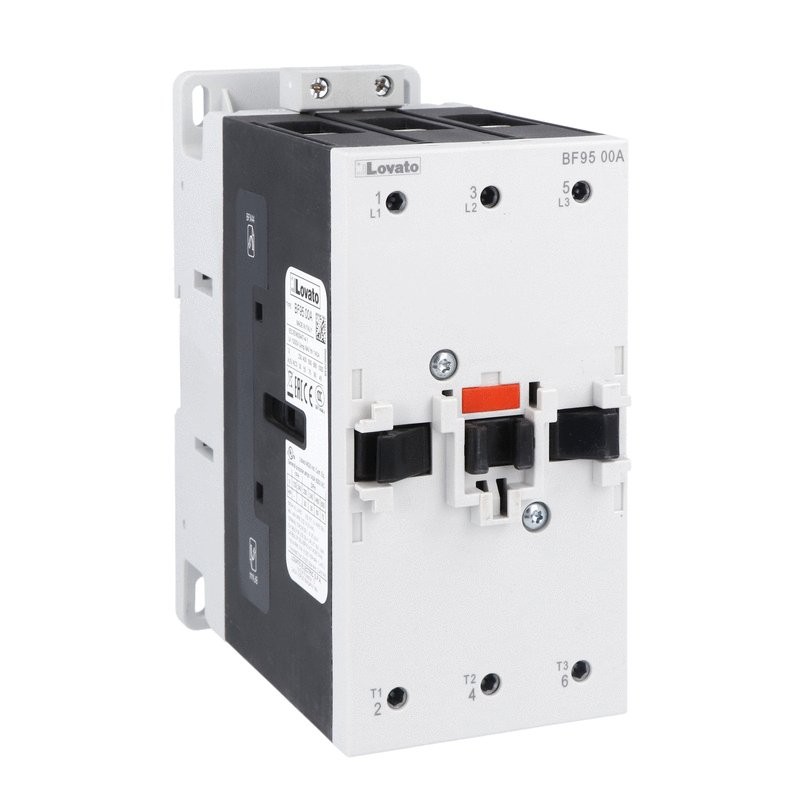

BF9500A02460 LOVATO 3P CONTACTOR 95A AC3 24VAC 60HZ
BF9500A02460
LOVATO ELECTRIC
3P CONTACTOR 95A AC3 24VAC 60HZ
Three-pole contactor, IEC operating current Ie (AC3) = 95A, AC coil 60Hz, 24VAC
THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 95A, AC COIL 60HZ, 24VAC
Low-voltage industrial components > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲BF9500A02460
Three-pole contactor, IEC operating current Ie (AC3) = 95A, AC coil 60Hz, 24VAC
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 3
- Type of coil:
- AC coil 60Hz
- Rated coil voltage [V]:
- 24
- IEC operating current Ith (AC1) [A]:
- 140
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 95A / 55Kw
- UL/CSA horsepower ratings 480V [HP]:
- 60
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | BF9500A02460 |
|---|---|
| Weight [g] | 2197 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 173X082X145 |
| Volume [cm³] | 2056 |
| Bar code [EAN13] | 8013975238745 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 45 A |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 140 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 95 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Rated operation power at AC-3, 400 V (EF001364) | 55 kW |
