LOVATO ELECTRICIndustrial Contactors and Accessories - LOVATO ELECTRICBF9400A57560 LOVATO 3P CONTACTOR 94A AC3 575VAC 60HZ

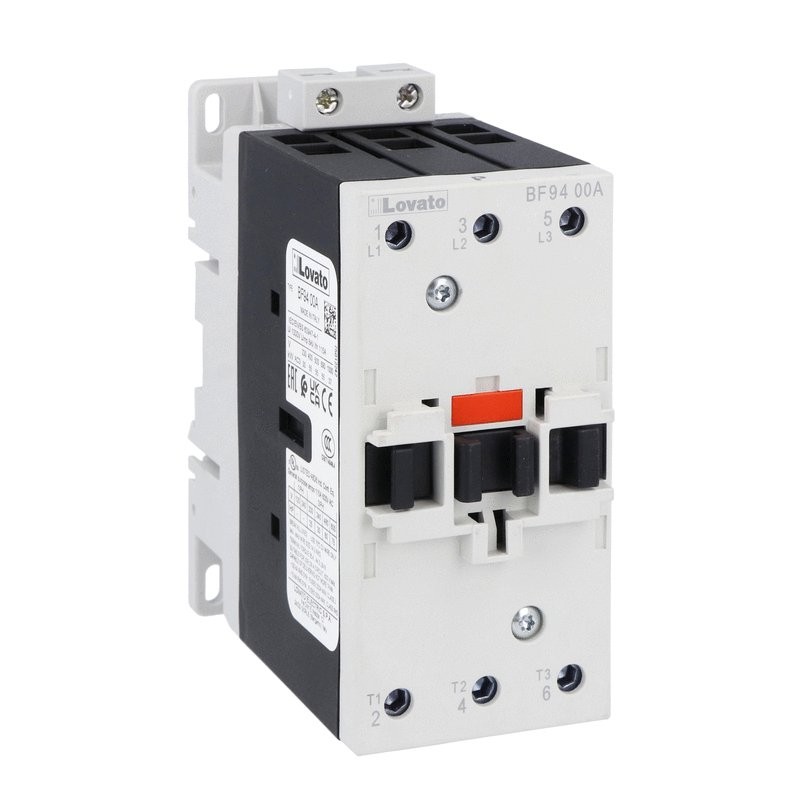

LOVATO ELECTRIC BF9400A57560 BF9400A57560 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BF9400A57560 LOVATO 3P CONTACTOR 94A AC3 575VAC 60HZ

Reference: BF9400A57560

Manufacturer: LOVATO ELECTRIC

Description:

3P CONTACTOR 94A AC3 575VAC 60HZ
Three-pole contactor, IEC operating current Ie (AC3) = 94A, AC coil 60Hz, 575VAC
THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 94A, AC COIL 60HZ, 575VAC

Categories:

  • Low-voltage industrial components > Power contactor, AC switching
  • LOVATO ELECTRIC > Industrial Contactors and Accessories - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

BF9400A57560

Three-pole contactor, IEC operating current Ie (AC3) = 94A, AC coil 60Hz, 575VAC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC coil 60Hz
Rated coil voltage [V]:
575
IEC operating current Ith (AC1) [A]:
115
IEC operating current and power Ie (AC3) 400V [A/Kw]:
94A / 55Kw
UL/CSA horsepower ratings 480V [HP]:
60
Type of mounting:
Screw / DIN rail 35mm
Order codeBF9400A57560
Weight [g]1020
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]141X063X120
Volume [cm³]1066
Bar code [EAN13]8013975243756
HS Code85365080

ETIM for BF9400A57560 Low-voltage industrial controls and switchgear (EC000066)

Feature nameVoltage type for actuating (EF008242)
Feature valueAC
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueFrame clamp
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value575 V
Feature nameModular version (EF001126)
Feature valueNo
Feature nameRated operation current Ie at AC-4, 400 V (EF008495)
Feature value45 A
Feature nameRated operation current Ie at AC-1, 400 V (EF001393)
Feature value115 A
Feature nameRated operation current Ie at AC-3, 400 V (EF001392)
Feature value95 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of normally closed contacts as main contact (EF001375)
Feature value0
Feature nameNumber of normally open contacts as main contact (EF001374)
Feature value3
Feature nameRated operation power at AC-3, 400 V (EF001364)
Feature value55 kW

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LOVATO EN
99 Mbytes
