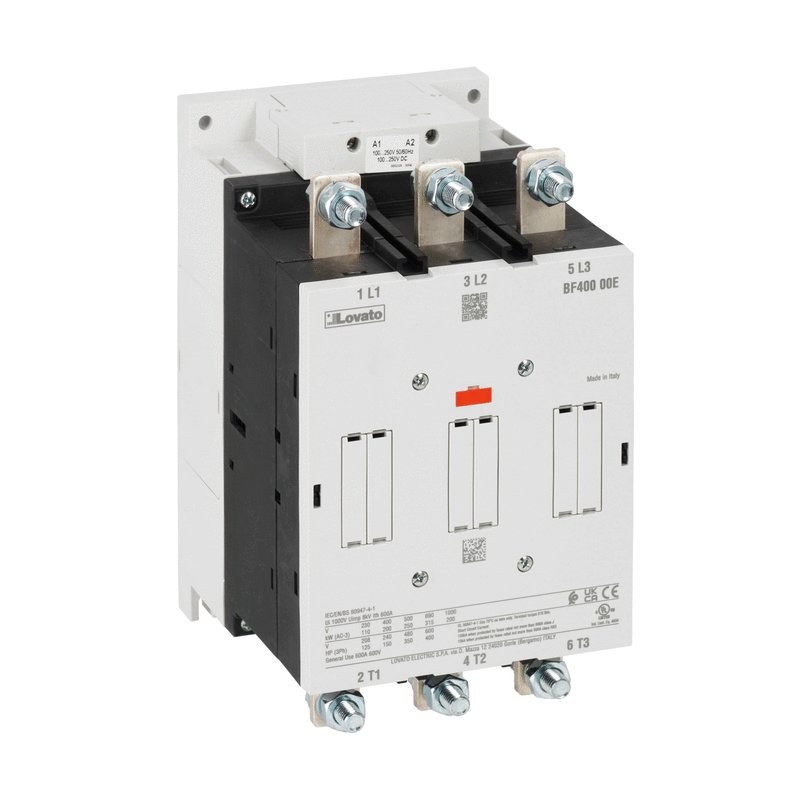

BF40000E110 LOVATO CONTACTOR 3P 400A AC3 60... 130VAC/DC
BF40000E110
LOVATO ELECTRIC
CONTACTOR 3P 400A AC3 60... 130VAC/DC
Three-pole contactor, IEC operating current Ie (AC3) = 400A, AC/DC coil, 60…130VAC/DC
Low-voltage industrial components > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲BF40000E110
Three-pole contactor, IEC operating current Ie (AC3) = 400A, AC/DC coil, 60…130VAC/DC
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 3
- Type of coil:
- AC/DC coil
- Rated coil voltage [V]:
- 60…130
- IEC operating current Ith (AC1) [A]:
- 600
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 400A /200Kw
- UL/CSA horsepower ratings 480V [HP]:
- 350
- Type of mounting:
- Screw
| Order code | BF40000E110 |
|---|---|
| Weight [g] | 4600 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 276X235X245 |
| Volume [cm³] | 15890 |
| Bar code [EAN13] | 8013975312698 |
| HS Code | 85365080 |
1718.52 £
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 60 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 60 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 60 V |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 190 A |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 600 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 400 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 3 |
| Number of normally open contacts as main contact (EF001374) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 200 kW |
| Modular version (EF001126) | Yes |
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| BF40000E110 EN_BF40000E110.pdf | 166 Kbytes |
|
