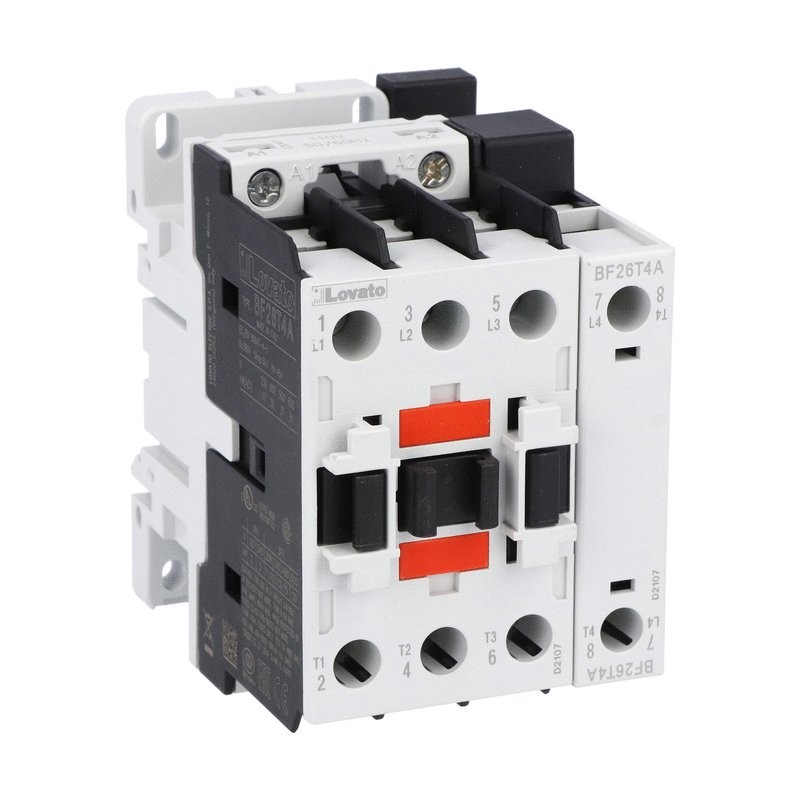

BF26T4A02460 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 45A, AC COIL 60HZ, 24VAC
BF26T4A02460
LOVATO ELECTRIC
FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 45A, AC COIL 60HZ, 24VAC
4P CONTACTOR NO 45A AC1 24/60
Four-pole contactor, IEC operating current Ith (AC1) = 45A, AC coil 60Hz, 24VAC
Low-voltage industrial components > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲BF26T4A02460
Four-pole contactor, IEC operating current Ith (AC1) = 45A, AC coil 60Hz, 24VAC
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 4
- Type of coil:
- AC coil 60Hz
- Rated coil voltage [V]:
- 24
- IEC operating current Ith (AC1) [A]:
- 45
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 26A /13Kw
- UL/CSA horsepower ratings 480V [HP]:
- 15
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | BF26T4A02460 |
|---|---|
| Weight [g] | 508 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 097X065X090 |
| Volume [cm³] | 567.45 |
| Bar code [EAN13] | 8013975161746 |
| HS Code | 85365080 |
125.83 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 11.5 A |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 45 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 26 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 4 |
| Rated operation power at AC-3, 400 V (EF001364) | 13 kW |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| BF26T4A02460 BF26T4A02460 02-Contactors-02-January-2018_EN.pdf | 6 Mbytes |
|
