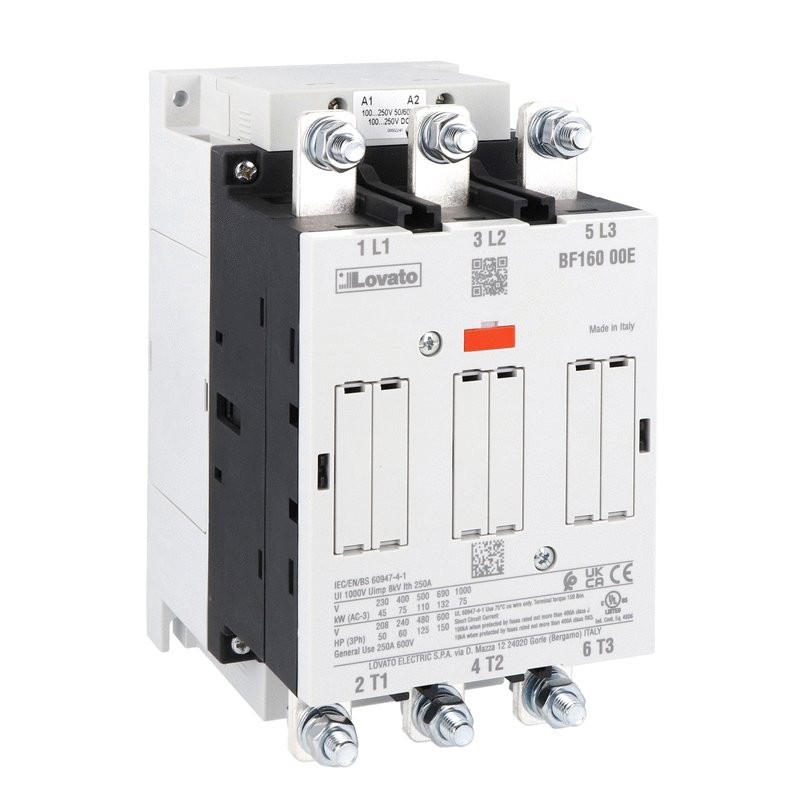

BF16000E400 LOVATO 3P CONTACTOR 160A AC3 250…500VAC/DC
BF16000E400
LOVATO ELECTRIC
3P CONTACTOR 160A AC3 250…500VAC/DC
Three-pole contactor, operating current Ie (AC3) = 160A, AC/DC coil 250... 500VAC/DC
Low-voltage industrial components > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲BF16000E400
Three-pole contactor, operating current Ie (AC3) = 160A, AC/DC coil 250... 500VAC/DC
Technical specifications
- Product type:
- Contactors
- Number of poles:
- 3
- Reel type:
- AC/DC Coil
- Coil voltage [V]:
- 250… 500
- IEC Ith (AC1) Rated Current [A]:
- 250
- Power per motor drive according to UL/CSA 480V [HP]:
- 125
- Type of mounting:
- Screw
| Ordering Code | BF16000E400 |
|---|---|
| Weight [g] | 3436.9 |
| Q.ty for packaging | 1 |
| Q.tà multipla conf. per order | 1 |
| Packaging dimensions [mm] | |
| Volume [cm³] | 8217,715 |
| Bar code [EAN13] | 8013975300329 |
| HS Code | 85365080 |
797,12 € VAT includedVat
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Rated control supply voltage DC (EF003980) | 250 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 250 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 250 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 75 A |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 250 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 160 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Rated operation power at AC-3, 400 V (EF001364) | 75 kW |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
