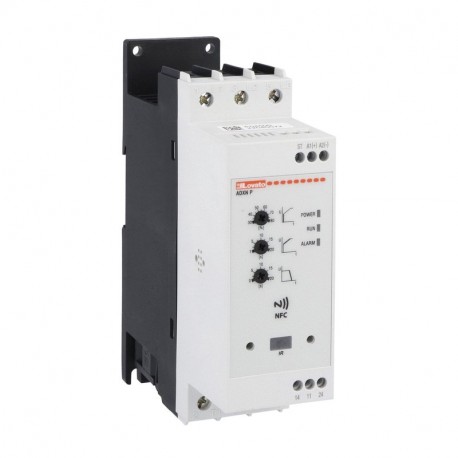

ADXNP045 LOVATO SOFT STARTER 45A AUX 100-240VAC ADVANCED
ADXNP045
LOVATO ELECTRIC
SOFT STARTER 45A AUX 100-240VAC ADVANCED
Soft starter, ADXNP... type, advanced version, with integrated by-pass relay, built-in fan. Auxiliary supply 100...240VAC. Rated operational voltage 208...600VAC, 45A
Low-voltage industrial components > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲ADXNP045
Soft starter, ADXNP... type, advanced version, with integrated by-pass relay, built-in fan. Auxiliary supply 100...240VAC. Rated operational voltage 208...600VAC, 45A
Technical specifications
- Type of product:
- Ultra compact, two phase control
- Version:
- Advanced
- Number of controlled phases:
- 2
- Rated operational voltage:
- 208…600VAC
- Rated supply voltage:
- 100…240VAC
- Rated starter current Ie [A]:
- 45
- Rated motor power 230VAC [kW]:
- 11
- Rated motor power 400VAC [kW]:
- 22
- Rated motor power 500VAC [KW]:
- 30
- Functions:
- NFC, motor current thermal protection, starting with current limit, optical port, optional RS485
| Order code | ADXNP045 |
|---|---|
| Weight [g] | 780 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 185X176X084 |
| Volume [cm³] | 2800 |
| Bar code [EAN13] | 8013975299364 |
| HS Code | 85044090 |
436.36 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated control supply voltage AC 60 Hz (EF003979) | 100 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
| Rated operating voltage Ue (EF002418) | 208 V |
| Torque control (EF009215) | No |
| Internal bypass (EF009214) | No |
| Integrated motor overload protection (EF007297) | No |
| With display (EF000458) | No |
| Rated surrounding temperature without derating (EF007074) | 60 °C |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 22 kW |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 11 kW |
| Rated operation current Ie at 40 °C Tu (EF007039) | 45 A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
